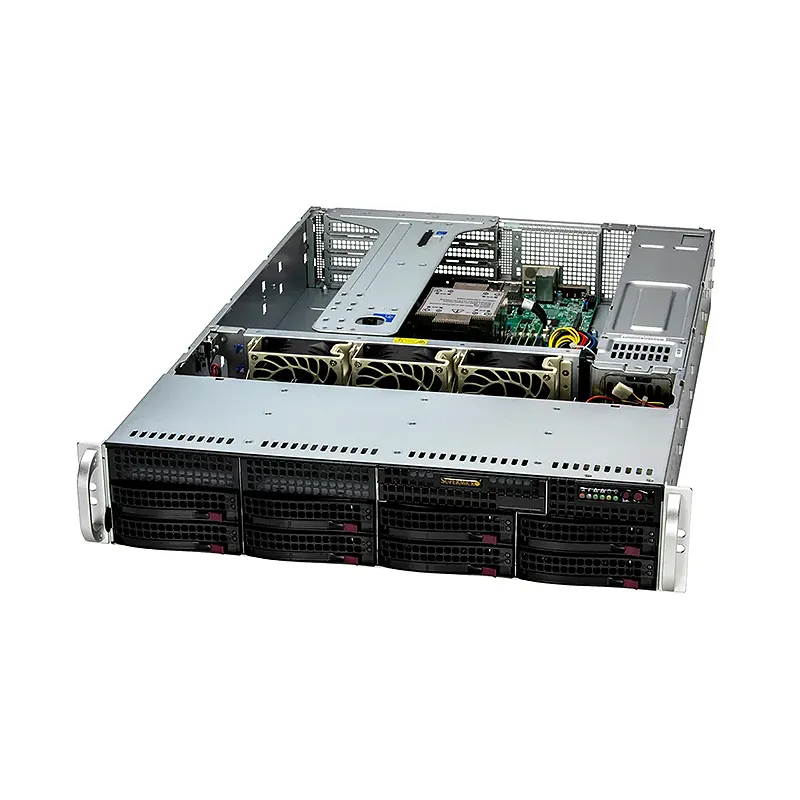

* NOTE: Image may not exactly match the product

WIO SuperServer SYS-522B-WR (Complete System Only

2U UP WIO with 8 hot-swap 3.5″ SAS/SATA (4 NVMe hybrid) bays and up to 5 PCIe 5.0 slots

$Quote1 Piece(MOQ)

SKU SYS-522B-WR Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-522B-WR

Motherboard

  • Super X14SBW-F

Processor

  • CPU
    Single Socket E2 (LGA-4710)
    Intel Xeon 6700 series processors with E-cores
  • Core Count
    Up to 144C/144T; Up to 108MB Cache

GPU

  • Max GPU Count
    Up to 1 double-width or 2 single-width GPUs
  • CPU-GPU Interconnect
    PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

  • Memory
    Slot Count: 8 DIMM slots/8 Channels
    Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM

On-Board Devices

  • SATA
    SATA (6Gbps)
  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    System on Chip
  • Network Connectivity
    2 RJ45 1GbE with Intel I210

Input / Output

  • LAN
    2 RJ45 1 GbE LAN ports
    1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
  • USB
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 3.2 Gen1 ports(Header)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
    1 COM port(Header)
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 64MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-825B2TS-R0WNP

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    25.5″ (647 mm)
  • Package
    11″ (H) x 26.5″ (W) x 34″ (D)
  • Weight
    Gross Weight: 59 lbs (26.76 kg)
    Net Weight: 34 lbs (15.42 kg)
  • Available Color
    Black

Front Panel

  • LED
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power Failure LED
    Power status
    System information
  • Buttons
    Power On/Off
    System Reset

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 FHFL slot 2 PCIe 5.0 x8 LP slots
    Option A* 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots 2 PCIe 5.0 x8 LP slots
    (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap 3.5″ SATA drive bays
    Option A: Total 8 bays 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 4 front hot-swap 3.5″/2.5″ SATA drive bays
    Option B: Total 8 bays 8 front hot-swap 3.5″/2.5″ SAS* drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
  • Peripheral Bays
    1 slim peripheral bay

System Cooling

  • Fans
    3 heavy duty PWM 80x80x38cm Fan(s)
  • Air Shroud
    1 CPU Air Shroud

Power Supply

  • 2x 1000W
    2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    76 x 40 x 336 mm
    Input
    800W: 100-127Vac / 50-60Hz
    1000W: 200-240Vdc / 50-60Hz
    1000W: 200-240Vac / 50-60Hz
    +12V
    Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 83A / Min: 0A (200Vdc-240Vdc)
    Max: 83A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

Data Center Optimized, Entry GPU server, Entry-Level System for SOHO and SMB, Firewall Application, General Purpose Computing, Networking Appliance, Web Server
Max GPU

1
CPU Type

Intel Xeon 6700 series processors with E-cores
Total PCI-E Slots

3
Drives

8
Drive Form Factors

3.5"
Form Factor

2U
Generation

X14
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
SATA

SATA (6Gbps)
LED

Device ActivityLAN 1 ActivityLAN 2 ActivityPower Failure LEDPower statusSystem information
Max GPU Count

Up to 1 double-width or 2 single-width GPUs
Serial

1 COM port(Rear)1 COM port(Header)
CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect
Air Shroud

1 CPU Air Shroud
Network Connectivity

2 RJ45 1GbE with Intel I210View AOC Options
LAN

2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
BIOS Type

AMI 64MB SPI Flash EEPROM
Package

11" (H) x 26.5" (W) x 34" (D)
Depth

25.5" (647 mm)
Fans

3 heavy duty PWM 80x80x38cm Fan(s)
Height

3.5" (89 mm)
Buttons

Power On/OffSystem Reset
Peripheral Bays

1 slim peripheral bay
M.2

2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
Memory

Slot Count: 8 DIMM slots/8 ChannelsMax Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
Core Count

Up to 144C/144T; Up to 108MB Cache
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
Note

Supports up to 300W TDP CPUs (Air Cooled)
Weight

Gross Weight: 59 lbs (26.76 kg)Net Weight: 34 lbs (15.42 kg)
Drive Bays Configuration

Default: Total 8 baysOption A: Total 8 baysOption B: Total 8 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB

2 USB 3.2 Gen1 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)
Available Color

Black
PCI-Express (PCIe) Configuration

DefaultOption A*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options
TPM

1 TPM Header
CPU

Single Socket E2 (LGA-4710)Intel Xeon 6700 series processors with E-cores
Chipset

System on Chip
Environmental Spec.
