Product SKUs

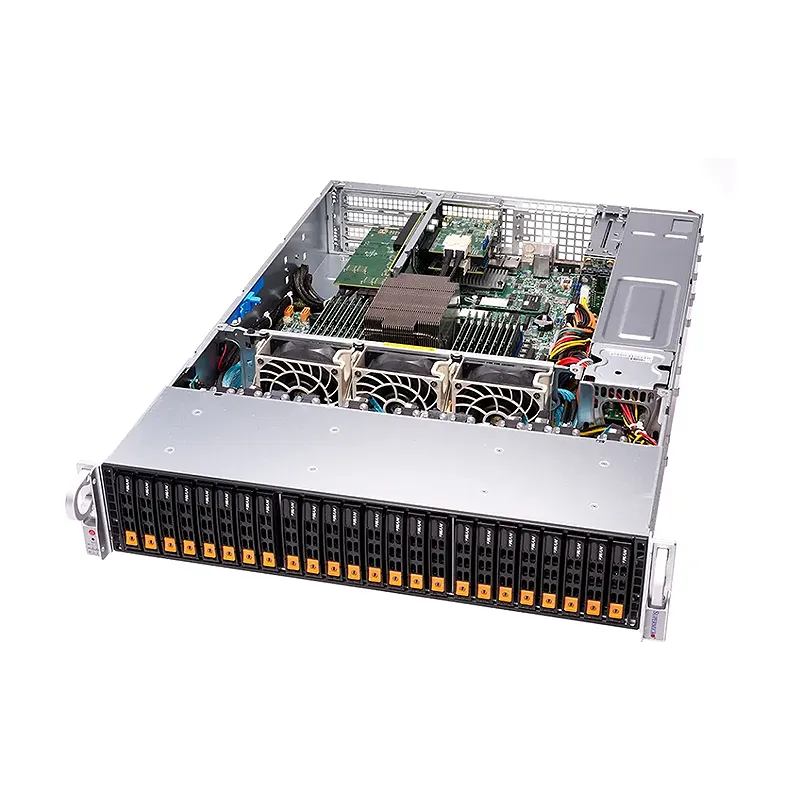

- A+ ServerAS -2114S-WN24RT
Motherboard
- Super H12SSW-NTR
Processor
- CPU
Single Socket SP3
AMD EPYC 7002/7003 Series Processors
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
AMD System on Chip
- Network Connectivity
2 RJ45 10GbE
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports - USB
5 USB 3.0 Type-A ports(Rear)
- Video
1 VGA port
- DOM
2 SATA DOM (Disk on Module) ports
- TPM
3 TPM header
System BIOS
- BIOS Type
AMI 256MB SPI Flash EEPROM
- BIOS Features
ACPI 6.3
PCI 2.2
Plug and Play (PnP)
SMBIOS 3.0 or later
USB Keyboard support
Chassis
- Form Factor
2U Rackmount
- Model
CSE-LA26TS-R1K23AWP1
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
25.5″ (648 mm)
- Package
11.4″ (H) x 26.7″ (W) x 34.5″ (D)
- Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg) - Available Color
Black front & sliver body
Front Panel
- LED
Drive activity
Network activity
Power status
Universal Information (UID) - Buttons
Power On/Off
Universal Information (UID)
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FHHL slots
- M.2
2 M.2 PCIe 4.0 x2 slots (M-key 2280/22110)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 24 bays 24 front hot-swap 2.5″ NVMe drive bays
- M.2
System Cooling
- Fans
3 heavy duty fans with optimal fan speed control
Power Supply
- 2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
