Product SKUs

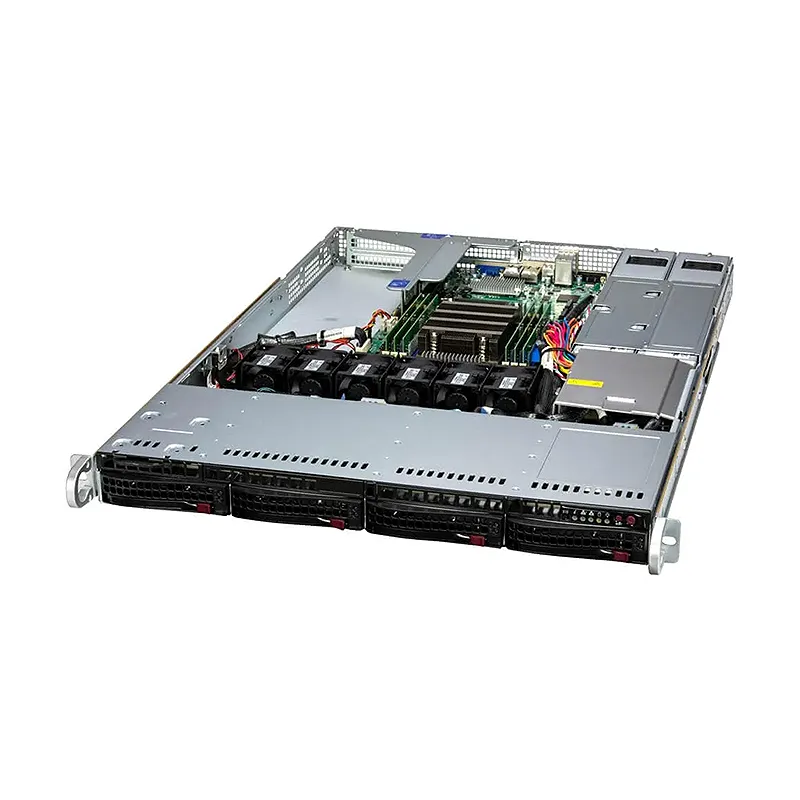

- A+ ServerAS -1015SV-WTNRT
Motherboard
- Super H13SVW-NT
Processor
- CPU
Single processor(s)
AMD EPYC 8004 Series Processor - Core Count
Up to 64C/128T
GPU
- Max GPU Count
Up to 1 double-width or 2 single-width GPUs
- Supported GPU
NVIDIA PCIe: L40, L4, A2
System Memory
- Memory
Slot Count: 6 DIMM slots
Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
2 RJ45 10GBASE-T with Broadcom BCM57416
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports - USB
4 ports(rear)
- Video
1 VGA port
- Serial
1 COM port(Rear)
- TPM
1 TPM Onboard/port 80
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Management
- Power configurations
1U redundant 800/860W Titanium AC power supply
Chassis
- Form Factor
1U
- Model
CSE-815BTS-R000WNP
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
25.6″ (650 mm)
- Package
8.5″ (H) x 23.5″ (W) x 33.7″ (D)
- Weight
Gross Weight: 34.5 lbs (15.46 kg)
Net Weight: 21.5 lbs (9.75 kg) - Available Color
Black
Front Panel
- LED
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED
Unit Identification (UID) LED - Buttons
Power On/Off button
System Reset button
Unit Identification (UID) button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 LP slot
- M.2
2 M.2 PCIe 3.0 x4 NVMe slots (M-key)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables) - M.2
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
- Fans
6 Heavy duty counter-rotating 40x40x56mm Fan(s)
Power Supply
- 2x 860W
2x 860W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
