Product SKUs

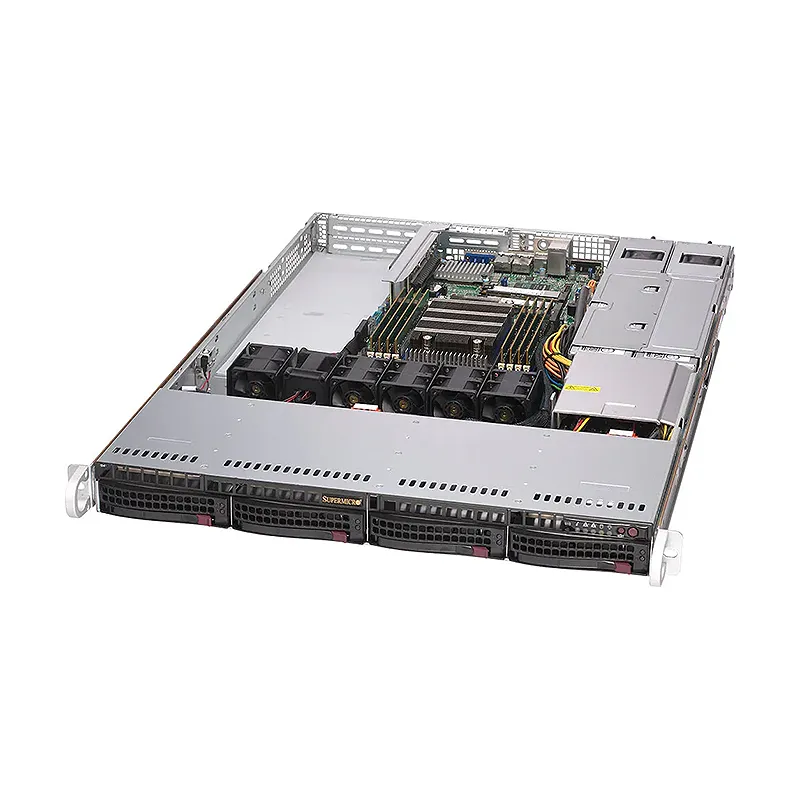

- A+ ServerAS -1014S-WTRTStandard version with PWS-504P-1R (Platinum Level)
- A+ ServerAS -1014S-WTRT-EUEuropean version with PWS-601A-1R (Titanium Level)
Motherboard
- Super H12SSW-NT
Processor
- CPU
Single Socket SP3
AMD EPYC 7002/7003 Series Processors
GPU
- Max GPU Count
Up to 2 double-width or 2 single-width GPUs
- Supported GPU
NVIDIA PCIe: T4, A2
System Memory
- Memory
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- SATA
SATA (6Gbps)
- Chipset
System on Chip
- Network Connectivity
2 RJ45 10GbE with Broadcom BCM57416
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 1 GBASE-T LAN ports - USB
4 USB 3.0 ports(rear)
1 USB 3.0 Type-A port - Video
1 VGA port
- DOM
2 Super DOM (Disk on Module) ports
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-815TS-R504WBP4
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
25.6″ (650 mm)
- Package
8.5″ (H) x 23.5″ (W) x 33.7″ (D)
- Weight
Gross Weight: 46 lbs (20.87 kg)
Net Weight: 22 lbs (9.98 kg) - Available Color
Black
Front Panel
- LED
HDD activity
Network activity
Power status
Universal Information (UID) - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 LP slot
- M.2
2 M.2 PCIe 3.0 x1 NVMe/SATA slots (M-key)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ SATA drive bays
Option A: Total 4 bays 4 front hot-swap 3.5″/2.5″ PCIe 3.0 NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) - Peripheral Bays
1 slim DVD bay (optional)
- M.2
System Cooling
- Fans
2 AOC cooling Fan(s)
4 Counter-rotating PWM 4cm Fan(s)
Power Supply
- 2x 500W
2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 320 mm
Total Output Power
Input
500W: 100-240Vac / 50-60Hz
+12V
Max: 42A / Min: 0.5A (100Vac-240Vac)
Max: 42A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Platinum Level
[
Test Report
]
