Product SKUs

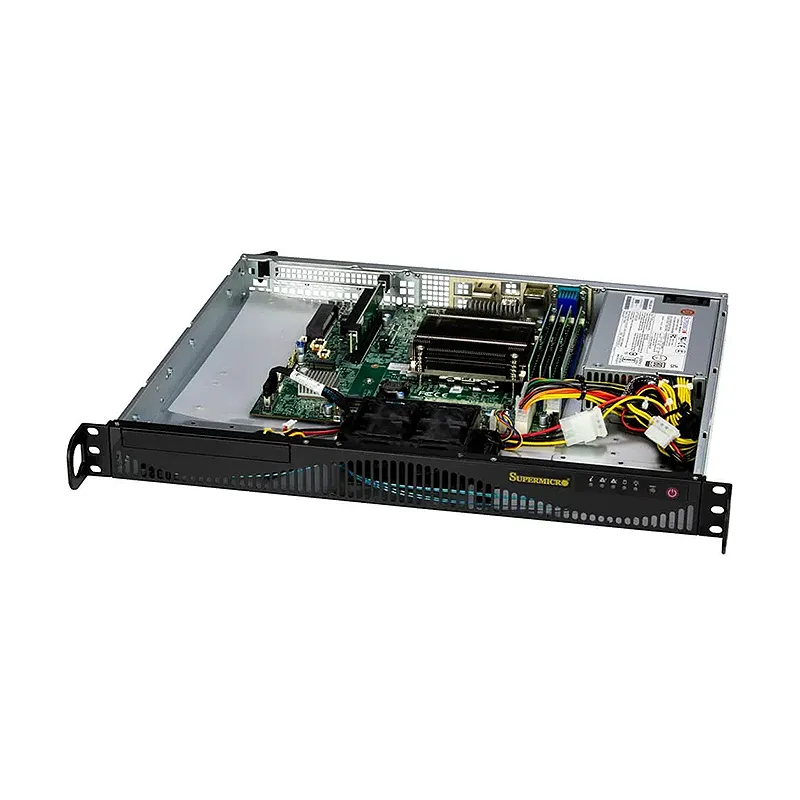

- SuperServerSYS-511R-ML
Motherboard
- Super X13SCH-SYS
Processor
- CPU
Single processor(s)
Intel Xeon E-2400 series Processors and 12th Gen. Pentium Processors - Core Count
Up to 8C/16T; Up to 24MB Cache
System Memory
- Memory
Slot Count: 4 DIMM slots/2 Channels
Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM - Memory Voltage
1.1V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- Chipset
Intel C266
- Network Connectivity
2 RJ45 1GbE with Intel I210
Input / Output
- LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB
2 USB 2.0 ports(header)
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port(Header) - Video
1 VGA port
- Serial
1 COM port(Rear)
1 COM port(Header) - TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
Mini-1U
- Model
CSE-512F-350B1
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
14.5″ (368 mm)
- Package
6.3″ (H) x 22″ (W) x 20″ (D)
- Weight
Gross Weight: 14 lbs (6.35 kg)
Net Weight: 11 lbs (4.99 kg) - Available Color
Black
Front Panel
- LED
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED - Buttons
Power On/Off button
System Reset button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x16 FHHL slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 1 bay 1 internal fixed 3.5″ SATA drive bay
Option A: Total 2 bays 2 internal fixed 3.5″ SATA* drive bays
Option B: Total 3 bays 3 internal fixed 2.5″ SATA* drive bays
(*SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
- Fans
2 counter-rotation PWM 40x40x56mm Fan(s)
Power Supply
- 1x 350W
1x 350W Platinum Level (93%) power supply
Dimension (WxHxL)
100 x 40 x 180 mm
Total Output Power
Input
350W: 100-240Vac
350W: 100-240Vac / 50-60Hz
+12V
Max: 29A / Min: 0.5A (100Vac-240Vac)
Max: 29A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Output Type
24pin ATX
Certification
Platinum Level
[
