Product SKUs

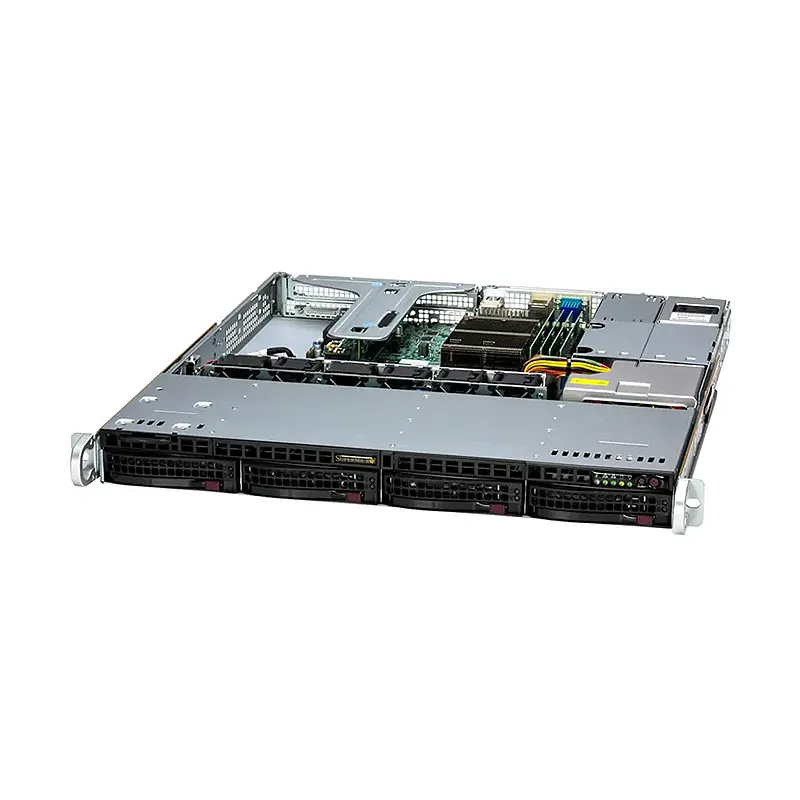

- SuperServerSYS-511R-M
Motherboard
- Super X13SCH-SYS
Processor
- CPU
Single processor(s)
Intel Xeon E-2400 series Processors and 12th Gen. Pentium Processors - Core Count
Up to 8C/16T; Up to 24MB Cache
System Memory
- Memory
Slot Count: 4 DIMM slots/2 Channels
Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM - Memory Voltage
1.1V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- Chipset
Intel C266
- Network Connectivity
2 RJ45 1GbE with Intel I210
Input / Output
- LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB
4 USB 2.0 ports(header)
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port(Header) - Video
1 VGA port
- Serial
1 COM port(Rear)
1 COM port(Header) - TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-813MF2TS-R0RCNBP
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
19.98″ (507 mm)
- Package
8.5″ (H) x 24″ (W) x 29.5″ (D)
- Weight
Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg) - Available Color
Black
Front Panel
- LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information - Buttons
Power On/Off
System Reset
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x8 LP slot
Option A 1 PCIe 5.0 x16 FHHL slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables) - M.2
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
- Peripheral Bays
2 2.5″ bays (optional)
System Cooling
- Fans
2 AOC cooling Fan(s) (optional)
4 middle cooling PWM 40x40x28mm Fan(s)
Power Supply
- 1x 600W
1x 600W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
54.5 x 40.25 x 220 mm
Input
600W: 100-127Vac / 50-60Hz
600W: 200-240Vdc / 50-60Hz
600W: 200-240Vac / 50-60Hz
+12V
Max: 50A / Min: 0A (100Vac-127Vac)
Max: 50A / Min: 0A (200Vdc-240Vdc)
Max: 50A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
