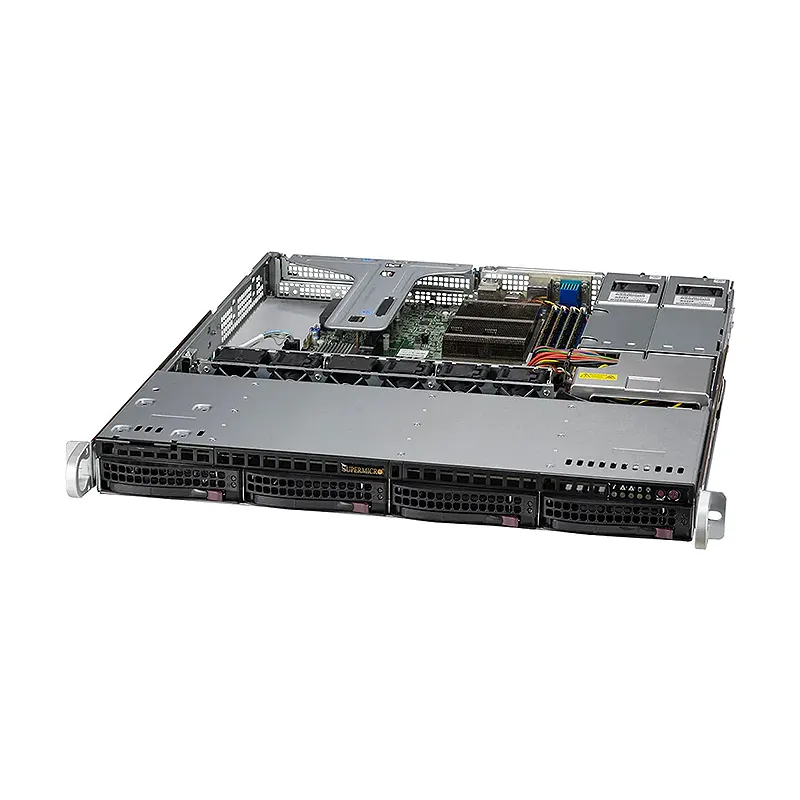

UP SuperServer SYS-510T-MR

Brand	Supermicro
Products Status	New
Applications	Encoding Decoding, Small Business, Virtualization
Max GPU	1
CPU Type	Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
Total PCI-E Slots	2
Drives	4
Drive Form Factors	3.5"
Form Factor	1U
Generation	X12
Interface	SAS (Optional), SATA (Native)
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
LED	Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Max GPU Count	Up to 1 single-width GPU
Serial	1 COM port(Rear)1 COM port(Header)
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
Supported GPU	NVIDIA PCIe: T400, T1000View GPU Options
Network Connectivity	2 RJ45 1GbE with Intel I210View AOC Options
LAN	2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	8.5" (H) x 24" (W) x 29.5" (D)
Depth	19.98" (507 mm)
Fans	4 middle cooling PWM 40x40x28mm Fan(s)2 AOC cooling Fan(s) (optional)
Height	1.7" (43 mm)
Buttons	Power On/OffSystem Reset
Peripheral Bays	2 2.5" bays
M.2	1 M.2 NVMe slot (M-key 2280/22110)
Memory	Slot Count: 4 DIMM slotsMax Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 8C/16T; Up to 16MB Cache
Note	Supports up to 95W TDP CPUs (Air Cooled)
Weight	Gross Weight: 30.4 lbs (13.8 kg)Net Weight: 17.6 lbs (8 kg)
Drive Bays Configuration	Default: Total 4 bays
USB	4 USB 2.0 ports(header)2 USB 3.2 Gen1 Type-A ports(rear)2 USB 2.0 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)1 USB 3.2 Gen1 Type-A port(Header)
Available Color	Black
PCI-Express (PCIe) Configuration	DefaultOption A
TPM	1 TPM Header
CPU	Single Socket H5 (LGA-1200)Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
Chipset	Intel C256
Memory Voltage	1.2V
Environmental Spec.
DOM	DOM
