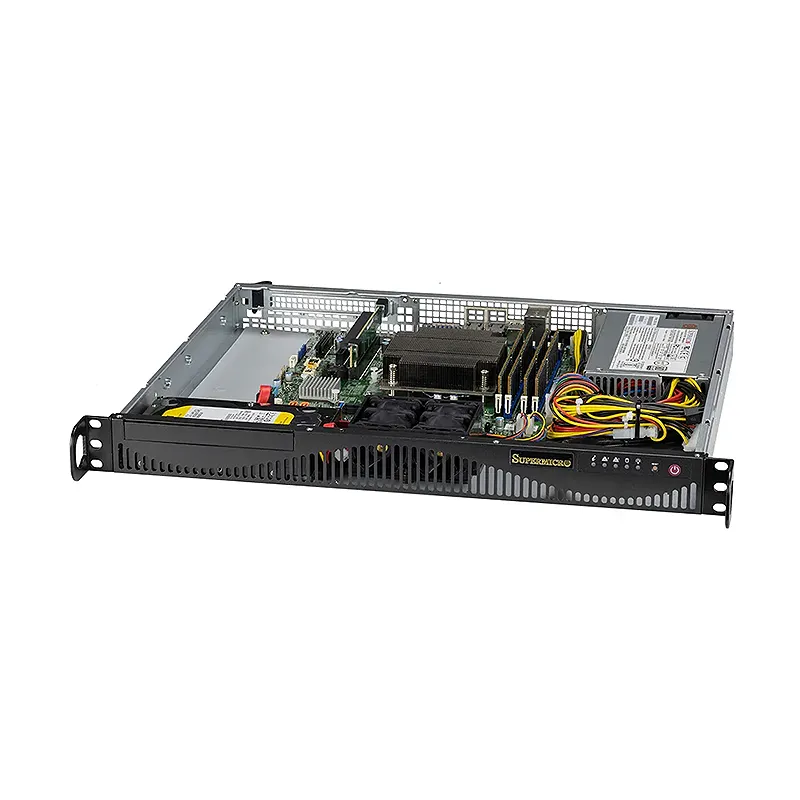

* NOTE: Image may not exactly match the product

UP SuperServer SYS-510T-ML

1U UP short-depth mainstream server

$Quote1 Piece(MOQ)

SKU SYS-510T-ML Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-510T-ML

Motherboard

  • Super X12STL-F

Processor

  • CPU
    Single Socket H5 (LGA-1200)
    Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
  • Core Count
    Up to 8C/16T; Up to 16MB Cache

System Memory

  • Memory
    Slot Count: 4 DIMM slots
    Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • Chipset
    Intel C252
  • Network Connectivity
    2 RJ45 1GbE with Intel I210

Input / Output

  • LAN
    2 RJ45 1 GbE LAN ports
    1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
  • USB
    2 USB 2.0 ports(header)
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 2.0 Type-A ports(rear)
    2 USB 3.2 Gen1 ports(Header)
    1 USB 3.2 Gen1 Type-A port(Header)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
    1 COM port(Header)
  • DOM
    2 Super DOM (Disk on Module) portswith built-in power
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    Mini-1U
  • Model
    CSE-512F-350B1

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    14.5″ (368 mm)
  • Package
    6.3″ (H) x 22″ (W) x 20″ (D)
  • Weight
    Gross Weight: 14 lbs (6.35 kg)
    Net Weight: 11 lbs (4.99 kg)
  • Available Color
    Black

Front Panel

  • LED
    Fan Fail/System Over Heat LED
    HDD activity LED
    Network Activity LEDs
    Power status LED
  • Buttons
    Power On/Off button
    System Reset button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 1 PCIe 4.0 x8 (in x16) FHHL slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 1 bay 1 internal fixed 3.5″ SATA drive bay
    Option A: Total 2 bays 2 internal fixed 3.5″ SATA* drive bays
    Option B: Total 3 bays 3 internal fixed 2.5″ SATA* drive bays
    (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)

System Cooling

  • Fans
    2 counter-rotation PWM 40x40x56mm Fan(s)

Power Supply

  • 1x 350W
    1x 350W Platinum Level (93%) power supply
    Dimension (WxHxL)
    100 x 40 x 180 mm
    Total Output Power
    Input
    350W: 100-240Vac
    350W: 100-240Vac / 50-60Hz
    +12V
    Max: 29A / Min: 0.5A (100Vac-240Vac)
    Max: 29A / Min: 0.5A
    5V SB
    Max: 3A / Min: 0A
    Output Type
    24pin ATX
    Certification
    Platinum Level
    [
    Test Report
    ]
Brand

Supermicro
Products Status

New
Applications

Entry Appliance, Front-end, General Purpose, Web Hosting
Max GPU

1
CPU Type

Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
Total PCI-E Slots

1
Drives

1
Drive Form Factors

3.5"
Form Factor

Mini-1U
Generation

X12
Interface

SAS (Optional), SATA (Native)
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
LED

Fan Fail/System Over Heat LEDHDD activity LEDNetwork Activity LEDsPower status LED
Serial

1 COM port(Rear)1 COM port(Header)
Network Connectivity

2 RJ45 1GbE with Intel I210View AOC Options
LAN

2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
BIOS Type

AMI 32MB SPI Flash EEPROM
Package

6.3" (H) x 22" (W) x 20" (D)
Depth

14.5" (368 mm)
Fans

2 counter-rotation PWM 40x40x56mm Fan(s)
Height

1.7" (43 mm)
Buttons

Power On/Off buttonSystem Reset button
M.2

1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
Memory

Slot Count: 4 DIMM slotsMax Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
Core Count

Up to 8C/16T; Up to 16MB Cache
Note

Supports up to 95W TDP CPUs (Air Cooled)
Weight

Gross Weight: 14 lbs (6.35 kg)Net Weight: 11 lbs (4.99 kg)
Drive Bays Configuration

Default: Total 1 bayOption A: Total 2 baysOption B: Total 3 bays(*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB

2 USB 2.0 ports(header)2 USB 3.2 Gen1 Type-A ports(rear)2 USB 2.0 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)1 USB 3.2 Gen1 Type-A port(Header)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
TPM

1 TPM Header
CPU

Single Socket H5 (LGA-1200)Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
Chipset

Intel C252
Memory Voltage

1.2V
Environmental Spec.
DOM
