Product SKUs

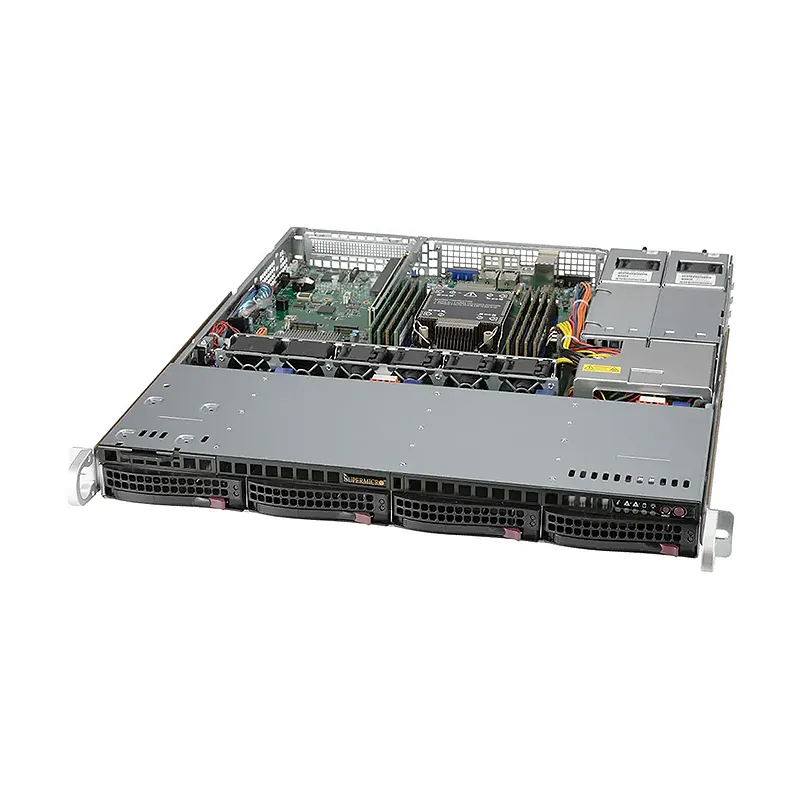

- SuperServerSYS-510P-MRStandard version with PWS-407P-1R (Platinum Level)
- SuperServerSYS-510P-MR-EUEuropean version with PWS-602A-1R (Titanium Level)
Motherboard
- Super X12SPO-F
Processor
- CPU
Single Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 36C/72T; Up to 54MB Cache
GPU
- Max GPU Count
Up to 1 single-width GPU
- Supported GPU
NVIDIA PCIe: T400
- CPU-GPU Interconnect
PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
- Memory
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support(VROC HW key required)
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 1GbE with Intel I350
Input / Output
- LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB
4 USB 2.0 ports(header)
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port - Video
1 VGA port
- Serial
1 COM port(Rear)
1 COM port(Header) - DOM
2 Super DOM (Disk on Module) portswith built-in power
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-813MF2TS-R407CBP2
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
19.98″ (507 mm)
- Package
8.5″ (H) x 24″ (W) x 29.5″ (D)
- Weight
Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg) - Available Color
Black
Front Panel
- LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information - Buttons
Power On/Off
System Reset
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 FHHL slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables) - M.2
2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)
- Peripheral Bays
2 2.5″ bays (optional)
System Cooling
- Fans
4 middle cooling PWM 40x40x28mm Fan(s)
2 AOC cooling Fan(s) (optional)
Power Supply
- 2x 400W
2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 220 mm
Total Output Power
Input
400W: 100-240Vac
400W: 100-240Vac / 50-60Hz
400W: 200-240Vdc / 50-60Hz
+12V
Max: 33A / Min: 0A (100Vac-240Vac)
Max: 33A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Output Type
Backplanes (gold finger)
