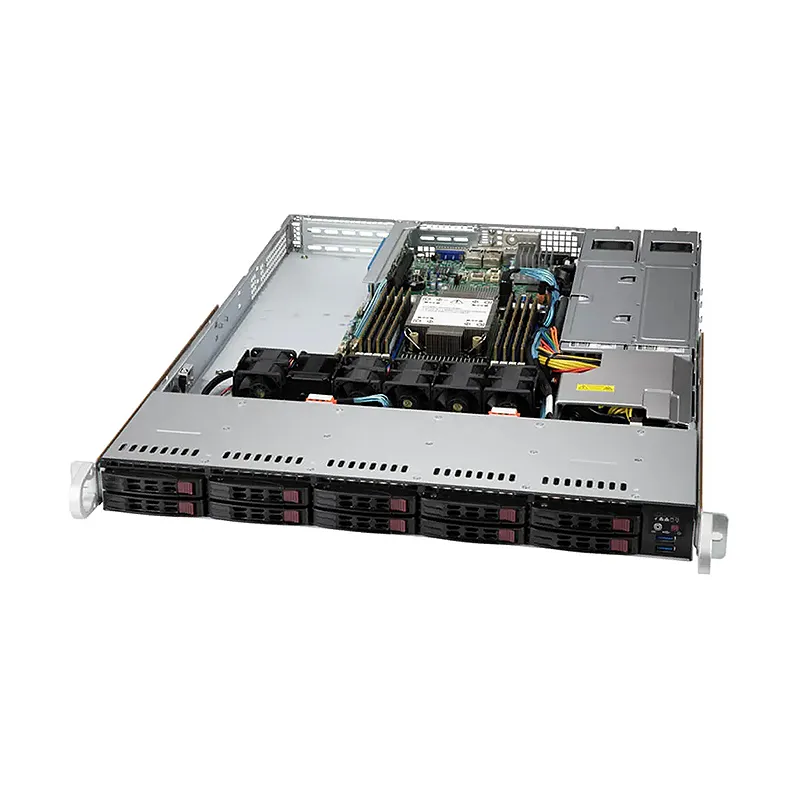

UP SuperServer SYS-110P-WR

Brand	Supermicro
Products Status	New
Applications	Cloud Computing, Data Center Optimized, Database Processing and Storage, Enterprise Server, Virtualization
Max GPU	1
CPU Type	3rd Gen Intel Xeon Scalable processors
Total PCI-E Slots	3
Drives	10
Drive Form Factors	2.5"
Form Factor	1U
Generation	X12
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
LED	Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Max GPU Count	Up to 1 single-width GPU
Supported GPU	A2View GPU Options, NVIDIA PCIe: T1000
Network Connectivity	2 RJ45 1GBASE-T with Intel I210View AOC Options
LAN	1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 1 GbE LAN ports
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	8" (H) x 24" (W) x 32" (D)
Depth	23.5" (597 mm)
Fans	5 counter-rotation PWM 40x40x56mm Fan(s)1 AOC cooling Fan(s) (optional)
Height	1.7" (43 mm)
Buttons	Power On/OffUID button
M.2	1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
Memory	Slot Count: 8 DIMM slotsMax Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Width	17.2" (437 mm)
Video	1 VGA 2 port
Core Count	Up to 40C/80T; Up to 60MB Cache
NVMe	NVMe; RAID 0/1/5/10 supportView NVMe Options
Note	Supports up to 270W TDP CPUs (Air Cooled)
Weight	Gross Weight: 38 lbs (17.24 kg)Net Weight: 25 lbs (11.34 kg)
Drive Bays Configuration	Default: Total 10 baysOption A: Total 10 bays
USB	2 USB 2.0 ports(rear)2 ports(front)1 Type-A port2 ports(header)2 ports(rear)
Available Color	Black
PCI-Express (PCIe) Configuration	Default
CPU	Single Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
Chipset	Intel C621A
Memory Voltage	1.2V
Environmental Spec.
DOM	DOM
