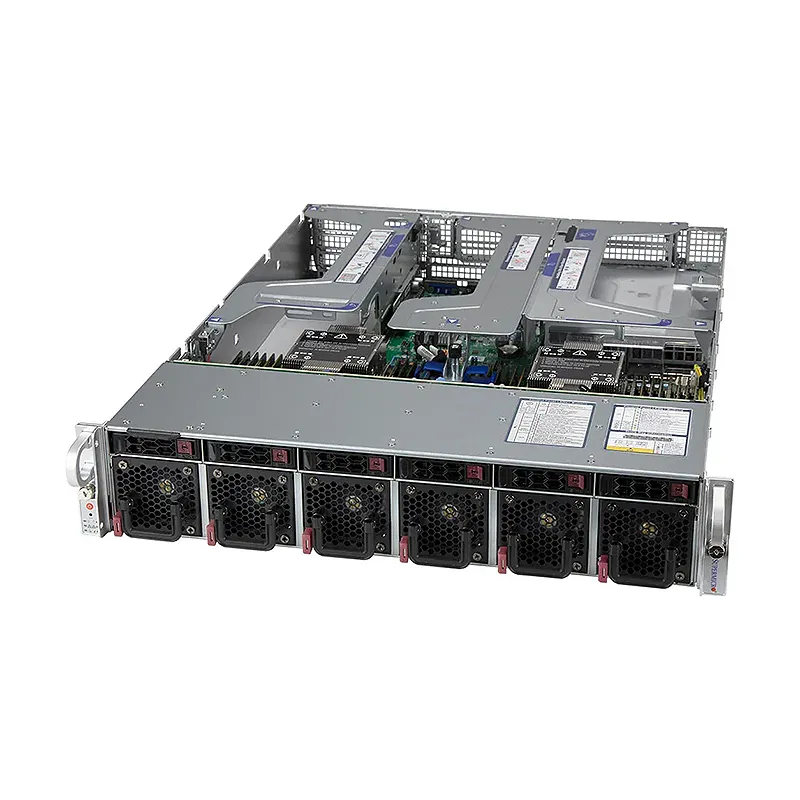

Ultra SuperServer SYS-220U-MTNR (Complete System Only

Brand	Supermicro
Products Status	New
Applications	5G/Telco, Application Tier Service Provider, Cloud Computing, High End Enterprise Server, HPC, Software Defined Storage, Virtualization
Max GPU	2
CPU Type	3rd Gen Intel Xeon Scalable processors
Total PCI-E Slots	8
Drives	6
Drive Form Factors	2.5"
Form Factor	2U
Generation	X12
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
LED	HDD activityLAN1 activityLAN2 acticityPower FailPower statusSystem information (overheat/UID)
Max GPU Count	Up to 4 double-width or 6 single-width GPUs
Supported GPU	A100, A10View GPU Options, A16, A2, A30, A40, NVIDIA PCIe: T4, RTX A5000, RTX A6000
Air Shroud	2 Air Shrouds
Network Connectivity
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	9.96" (H) x 24.6" (W) x 45.43" (D)
Depth	22.6" (574 mm)
Fans	6x 6cm heavy duty fans with optimal fan speed control
Height	3.5" (89 mm)
Buttons	Power On/OffUID button
Memory	Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
NVMe	NVMe; RAID 0/1/5/10 supportView NVMe Options
Note	Supports up to 270W TDP CPUs (Air Cooled)
Weight	Gross Weight: 66 lbs (30 kg)Net Weight: 40 lbs (18.2 kg)
Drive Bays Configuration	Default: Total 6 bays(*SAS support may require additional storage controller and/or cables)
USB	2 USB 3.0 ports(rear)
Available Color	Black front & silver body
PCI-Express (PCIe) Configuration	Default
CPU	Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
Chipset	Intel C621A
Memory Voltage	1.2V
Environmental Spec.
DOM	DOM
