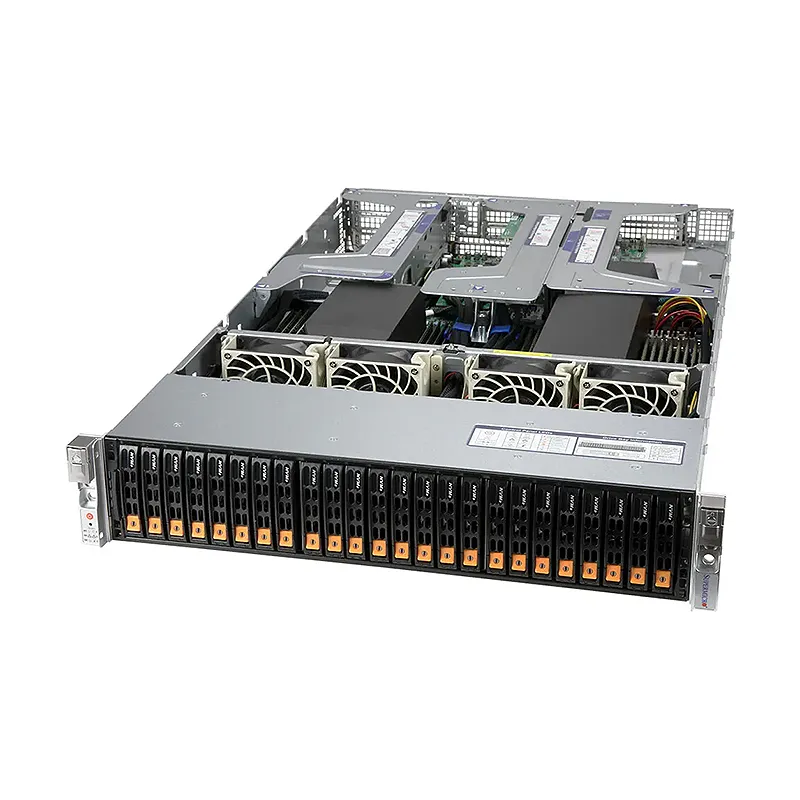

Ultra A+ Server AS -2124US-TNRP (Complete System Only

Product SKUs

A+ ServerAS -2124US-TNRP

Motherboard

Super H12DSU-iN

Processor

CPU
Dual Socket SP3
AMD EPYC 7002/7003 Series Processors

System Memory

Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset
System on Chip
Network Connectivity
2 RJ45 10GbE
2 SFP+ 10GbE
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports
2 SFP+ 10 GbE LAN ports
USB
2 USB 3.0 ports(rear)
1 USB 3.0 Type-A port
Video
2 VGA ports
DOM
2 SATA DOM (Disk on Module) ports
TPM
1 TPM header

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
USB Keyboard support
ACPI 5.1
DMI 2.3
PCI 2.2
SMBIOS 3.1.1

Chassis

Form Factor
2U Rackmount
Model
CSE-829U2TS-R1K62P3-T

Dimensions and Weight

Height
3.5″ (89 mm)
Width
17.2″ (437 mm)
Depth
28.46″ (723 mm)
Package
10.28″ (H) x 24.65″ (W) x 45.39″ (D)
Weight
Gross Weight: 63 lbs (28.6 kg)
Net Weight: 39 lbs (17.7 kg)
Available Color

Expansion Slots

PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 FH, 9.5″L slot

Drive Bays / Storage

Drive Bays Configuration
Default: Total 24 bays 24 front hot-swap 2.5″ NVMe drive bays
Option A: Total 24 bays 24 front hot-swap 2.5″ SAS*/SATA* drive bays
(*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2

System Cooling

Fans
4 heavy-duty PWM with optimal fan speed control Fan(s)

Power Supply

2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
Test Report
]

Brand	Supermicro
Products Status	New
Applications	Cloud Computing, High End Enterprise Server, Hyperconverged Storage, Virtualization
Max GPU	2
CPU Type	AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots	1
Drives	24
Drive Form Factors	2.5"
Form Factor	2U
Generation	H12
Interface	NVMe (Native), SAS (Optional), SATA (Optional)
Network Connectivity	2 RJ45 10GbE2 SFP+ 10GbEView Network Card (AOC) OptionsView AOC Options
BIOS Features	Plug and Play (PnP)USB Keyboard supportACPI 5.1DMI 2.3PCI 2.2SMBIOS 3.1.1
LAN	1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 10 GBASE-T LAN ports2 SFP+ 10 GbE LAN ports
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	10.28" (H) x 24.65" (W) x 45.39" (D)
Depth	28.46" (723 mm)
Fans	4 heavy-duty PWM with optimal fan speed control Fan(s)
Height	3.5" (89 mm)
Memory	Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width	17.2" (437 mm)
Video	2 VGA ports
ROHS	RoHS Compliant
Note	Supports up to 280W TDP CPUs (Air Cooled)
Weight	Gross Weight: 63 lbs (28.6 kg)Net Weight: 39 lbs (17.7 kg)
Drive Bays Configuration	Default: Total 24 baysOption A: Total 24 bays(*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 3.0 ports(rear)1 USB 3.0 Type-A port
PCI-Express (PCIe) Configuration	Default
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
TPM	1 TPM Header
CPU	Dual Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset	System on Chip
Environmental Spec.
DOM	DOM
