Product SKUs

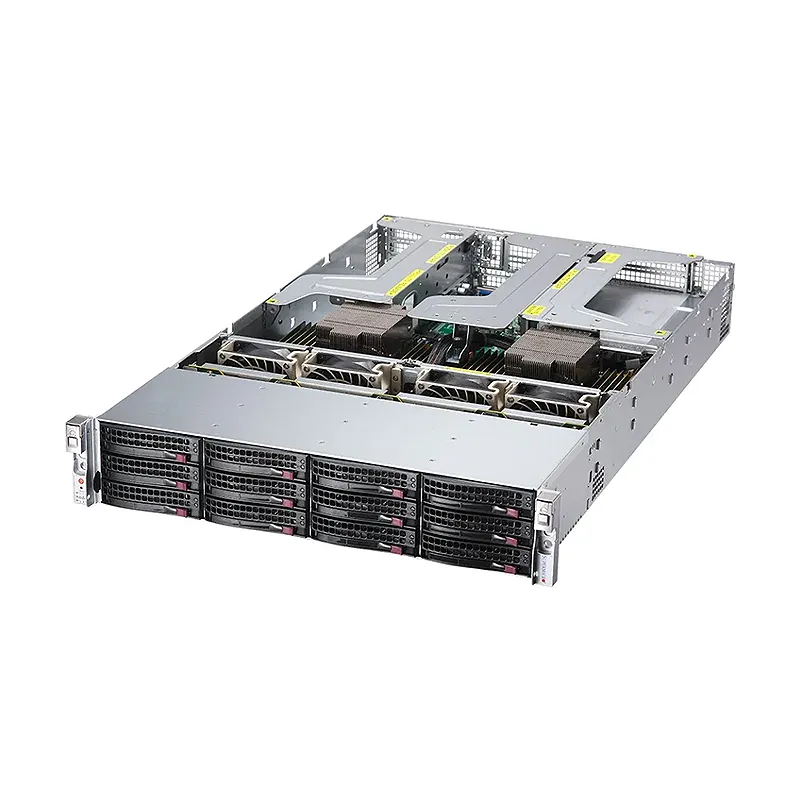

- A+ ServerAS -2024US-TNR
Motherboard
- Super H12DSU-iN
Processor
- CPU
Dual Socket SP3
AMD EPYC 7002/7003 Series Processors
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
Ultra Riser Card
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
3 USB 3.0 Type-A ports(Rear)
- Video
1 VGA port
- Serial
1 port
- DOM
2 SATA DOM (Disk on Module) ports
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
Plug and Play (PnP)
USB Keyboard support
ACPI 5.1
DMI 2.3
PCI 2.2
SMBIOS 3.1.1
Chassis
- Form Factor
2U Rackmount
- Model
CSE-829U2TS-R1K62P3-T
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
28.46″ (723 mm)
- Package
10.28″ (H) x 24.65″ (W) x 45.39″ (D)
- Weight
Gross Weight: 72 lbs (16.4 kg)
Net Weight: 36 lbs (16.4 kg) - Available Color
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FH/10.5″L slots 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 FH/9.5″L slot 1 PCIe 4.0 x8 (in x16) FH/9.5″L slot 1 PCIe 4.0 x8 internal slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 12 bays 12 front hot-swap 3.5″ SATA drive bays
Option A: Total 12 bays 8 front hot-swap 3.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe* drive bays
Option B: Total 12 bays 12 front hot-swap 3.5″ SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
System Cooling
- Fans
4 heavy duty fans with optimal fan speed control
Power Supply
- 2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
