Product SKUs

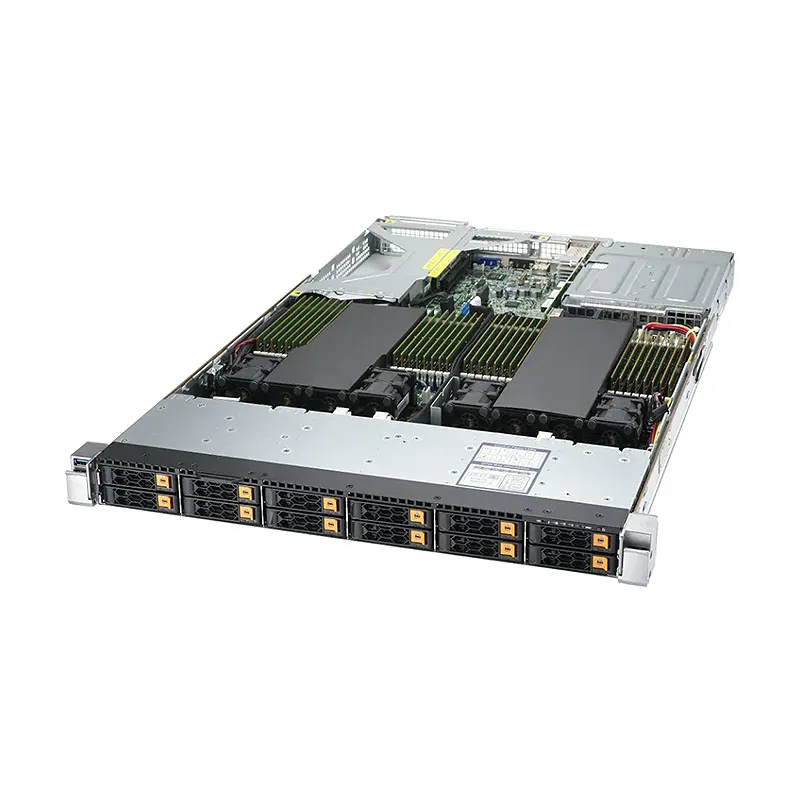

- A+ ServerAS -1124US-TNR
Motherboard
- Super H12DSU-iN
Processor
- CPU
Dual Socket SP3
AMD EPYC 7002/7003 Series Processors
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- SATA
SATA (6Gbps)
- Chipset
System on Chip
- Network Connectivity
Ultra Riser Card
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
4 USB 3.0 Type-A ports(Front)
- Video
1 VGA port
- Serial
1 COM port
- DOM
2 SATA DOM (Disk on Module) ports
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
Plug and Play (PnP)
USB Keyboard support
ACPI 5.1
DMI 2.3
PCI 2.2
SMBIOS 3.1.1
Management
- Power configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
Chassis
- Form Factor
1U Rackmount
- Model
CSE-119UTS-R1K22HP-T
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
28.5″ (724 mm)
- Package
7.99″ (H) x 23.81″ (W) x 37.4″ (D)
- Weight
- Available Color
Black
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 INTERNAL slot 2 PCIe 4.0 x16 FH, 9.5″L slots
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 12 bays 12 front hot-swap 2.5″ NVMe drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ SAS drive bays
Option B: Total 12 bays 12 front hot-swap 2.5″ SAS* drive bays
(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
System Cooling
- Fans
8 heavy duty fans with optimal fan speed control
Power Supply
- 2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vdc (For CCC Only)
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
