Product SKUs

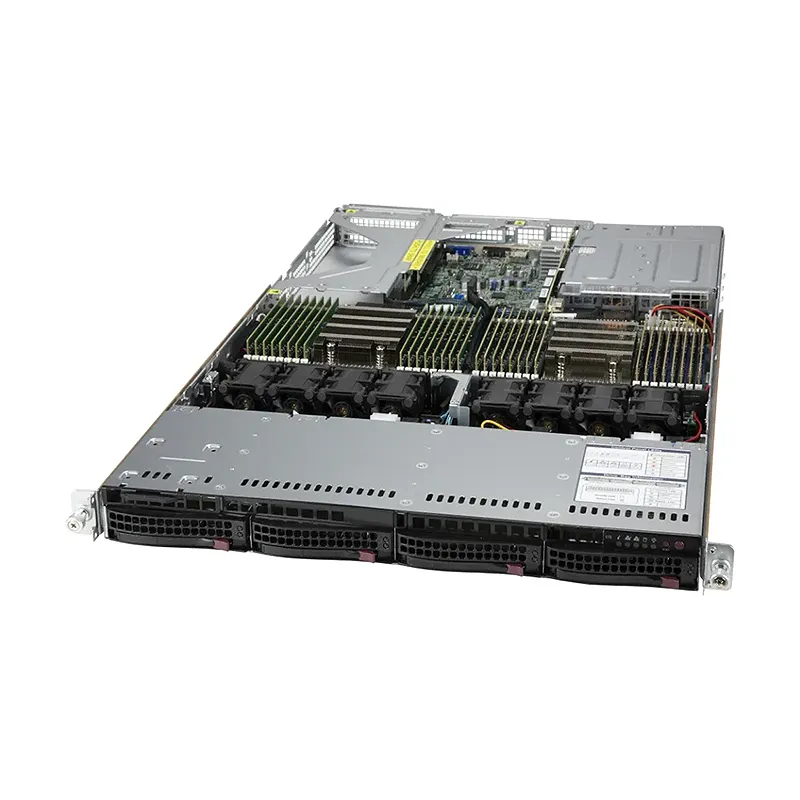

- A+ ServerAS -1024US-TNR
Motherboard
- Super H12DSU-iN
Processor
- CPU
Dual Socket SP3
AMD EPYC 7002/7003 Series Processors
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
Ultra Riser Card
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
3 USB 3.0 Type-A ports(Rear)
- Video
1 VGA port
- DOM
1 SATA DOM (Disk on Module) port
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
Plug and Play (PnP)
USB Keyboard support
ACPI 5.1
DMI 2.3
PCI 2.2
SMBIOS 3.1.1
Chassis
- Form Factor
1U Rackmount
- Model
CSE-819UTS-R1K02P-A
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
29″ (737 mm)
- Package
7.99″ (H) x 23.81″ (W) x 37.4″ (D)
- Weight
Gross Weight: 41 lbs (18.6 kg)
Net Weight: 26 lbs (11.8 kg) - Available Color
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 LP slot 2 PCIe 4.0 x16 FH, 9.5″L slots 1 PCIe 4.0 x16 INTERNAL slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ SATA drive bays
Option A: Total 4 bays 4 front hot-swap 3.5″/2.5″ NVMe* drive bays
Option B: Total 4 bays 4 front hot-swap 3.5″ SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
System Cooling
- Fans
8 heavy duty fans with optimal fan speed control
Power Supply
- 2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vdc / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (200Vac-240Vac)
Max: 83A (200Vdc-240Vdc)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
