Product SKUs

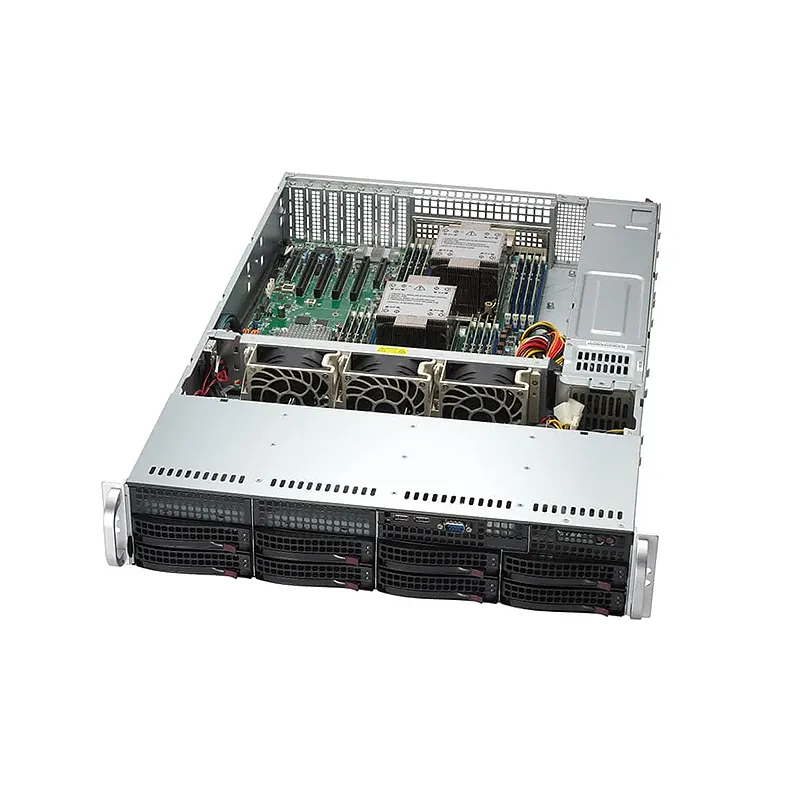

- SuperServerSYS-621P-TR
Motherboard
- Super X13DEI
Processor
- CPU
Dual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
On-Board Devices
- SATA
SATA (6Gbps)
- Chipset
Intel C741
- Network Connectivity
2 RJ45 1GbE
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 2.0 ports(front)
4 USB 3.0 ports(rear) - Video
1 VGA port
- Serial
1 COM port(Rear)
1 COM port(Front) - DOM
2 Super DOM (Disk on Module) ports
- TPM
1 TPM Onboard/port 80
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-825BTS-R1K23LPP1
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
25.5″ (647 mm)
- Package
11.4″ (H) x 26.7″ (W) x 34.5″ (D)
- Weight
Gross Weight: 69 lbs (31.2 kg)
Net Weight: 36.38 lbs (16.5 kg) - Available Color
Black
Front Panel
- LED
HDD activity
Network activity
Power status
System information (overheat/UID) - Buttons
Power On/Off
System Reset
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x8 LP slots 4 PCIe 5.0 x16 LP slots
- M.2
2 M.2 PCIe 4.0 x2 NVMe slots (M-key)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5″ SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables) - M.2
2 M.2 NVMe slots (M-key)
- Peripheral Bays
1 slim DVD bay (optional)
System Cooling
- Fans
3 middle 8cm Fan(s)
Power Supply
- 2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
