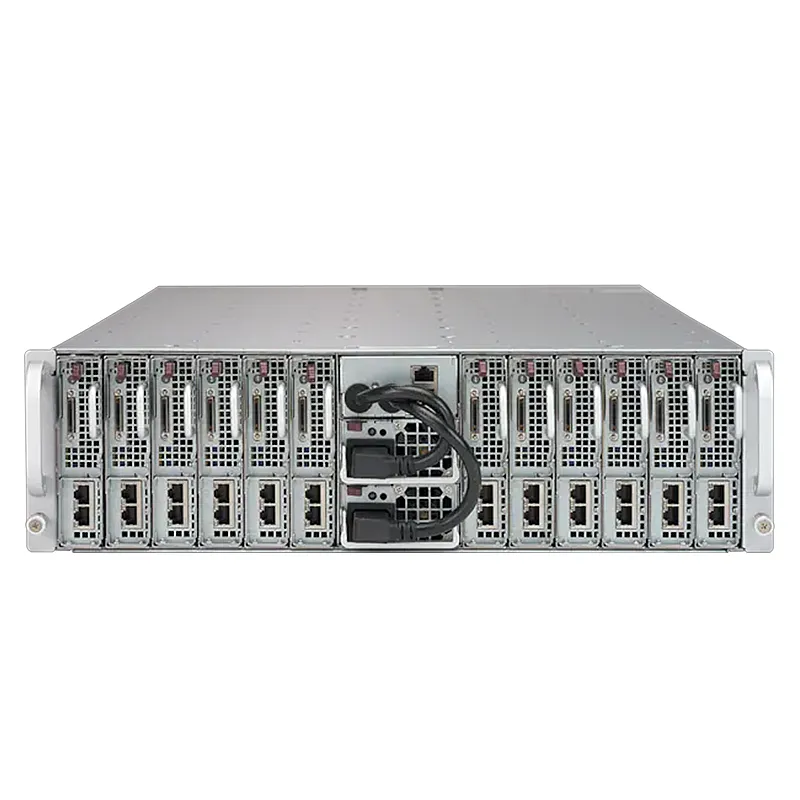

Supermicro MicroCloud SuperServer SYS-530MT-H12TRF
Supermicro MicroCloud SuperServer SYS-530MT-H12TRF
Supermicro MicroCloud SuperServer SYS-530MT-H12TRF
Supermicro MicroCloud SuperServer SYS-530MT-H12TRF
Supermicro MicroCloud SuperServer SYS-530MT-H12TRF
Supermicro MicroCloud SuperServer SYS-530MT-H12TRF

* NOTE: Image may not exactly match the product

Supermicro MicroCloud SuperServer SYS-530MT-H12TRF

$Quote1 Piece(MOQ)

SKU SYS-530MT-H12TRF Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Product SKUs
SuperServer SYS-530MT-H12TRF
Motherboard
Super X12STE-F
Processor (per Node)
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports 80W – 95W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
  • View Memory Options
On-Board Devices (per Node)
SATA
  • SATA (6Gbps) via Intel® C256; RAID 0/1/5/10 support
Chipset
  • Intel® C256
Network Connectivity
  • No NIC option supported
  • View AOC Options
Input / Output (per Node)
LAN
  • 2 RJ45 1 GbE LAN ports (Intel® I350)
USB
  • 2 USB 2.0 ports
  • 1 Type-C port(front)
Video
  • 1 port
DOM
  • 1 SATA DOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-939HN-R2K20BP
Dimensions and Weight
Height
  • 5.21″ (132.5 mm)
Width
  • 17.5″ (444.5 mm)
Depth
  • 29.5″ (749.3 mm)
Package
  • 16.1″ (H) x 28.35″ (W) x 42.36″ (D)
Weight
  • Gross Weight: 125 lbs (56.7 kg)
  • Net Weight: 95 lbs (43.09 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
LED
  • UID LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
  • 1 PCIe 4.0 x8 MicroLP slot
  • View AOC Options

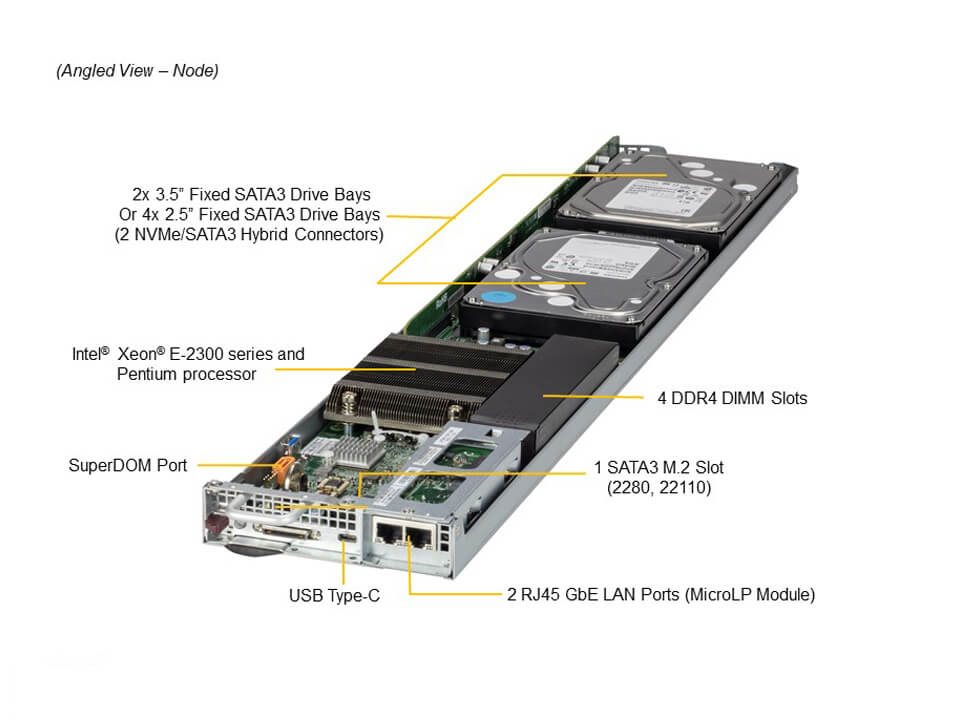

Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bays
  • 2 internal fixed 3.5″ NVMe/SAS drive bays
  • Option A: Total 4 bays
  • 4 internal fixed 2.5″ NVMe/SATA drive bays
  • View NVMe Options
  • View Drive Options
M.2
  • 1 M.2 SATA slot (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • 4 Heavy Duty 9cm Fan(s)
Power Supply
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1200W: 100-127Vac
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vdc-127Vdc)
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.33A / Min: 0A (220Vdc-240Vdc)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Brand

Supermicro
Products Status

New
Form Factor

3U
Motherboard

Super X12STE-F
Socket

LGA-1200 (Socket H5)
Memory

Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
SATA

SATA (6Gbps) via Intel? C256; RAID 0/1/5/10 support
LAN

2 RJ45 1 GbE LAN ports (Intel? I350)
USB

2 USB 2.0 ports 1 Type-C port(front)
BIOS Type

AMI 128Mb SPI Flash EEPROM
Expansion Slots

1 PCIe 4.0 x8 MicroLP slot
Dimension (WxHxL)

76 x 40 x 336 mm
