Product SKUs

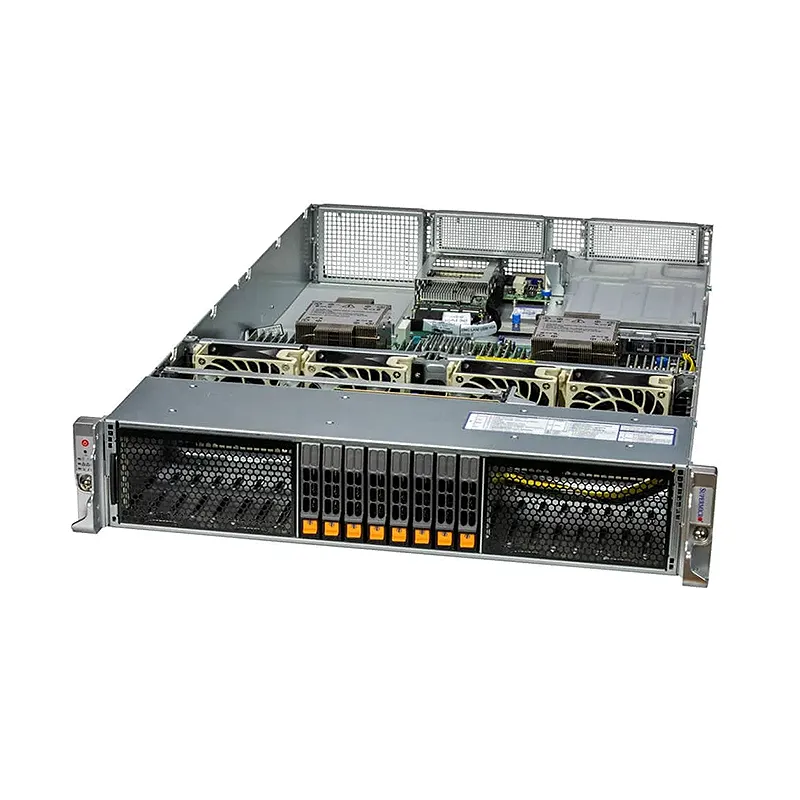

- SuperServerSYS-221H-TNR
- SuperServerSYS-221H-TNR-G1Gold Series version with pre-configured components
Motherboard
- Super X13DEM
Processor
- CPU
Dual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) - Core Count
Up to 64C/128T; Up to 320MB Cache per CPU
GPU
- Max GPU Count
Up to 4 double-width or 8 single-width GPUs
- Supported GPU
NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A4000, L40S, L4, A40, A16, A100
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM - Memory Voltage
1.1V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- Chipset
Intel C741
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 2.0 ports(rear)
2 USB 3.0 ports(Header) - Video
1 VGA port
System BIOS
- BIOS Type
AMI 64MB SPI Flash
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-HS219-R1K24P
Dimensions and Weight
- Height
3.5″ (88.9 mm)
- Width
17.2″ (437 mm)
- Depth
29.9″ (760 mm)
- Package
10.4″ (H) x 23.8″ (W) x 43.6″ (D)
- Weight
Gross Weight: 66 lbs (30 kg)
Net Weight: 40 lbs (18.2 kg) - Available Color
Front Panel
- LED
HDD activity
LAN1 activity
LAN2 activity
Power
Power Fail
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Option A* 4 PCIe 5.0 x16 FH/10.5″L double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B* 8 PCIe 5.0 x8 (in x16) FH/10.5″L slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) - CXL Support
Up to 4 CXL 1.1 x16/x8 devices
- M.2
2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
Option A: Total 16 bays 16 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 NVMe/SATA slots (M-key 2280/22110)
System Cooling
- Fans
4x 8cm heavy duty fans with optimal fan speed control
- Air Shroud
2 Air Shrouds
- Liquid Cooling
Direct to Chip (D2C) Cold Plate (optional)
Power Supply
- 2x 1200W
2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
