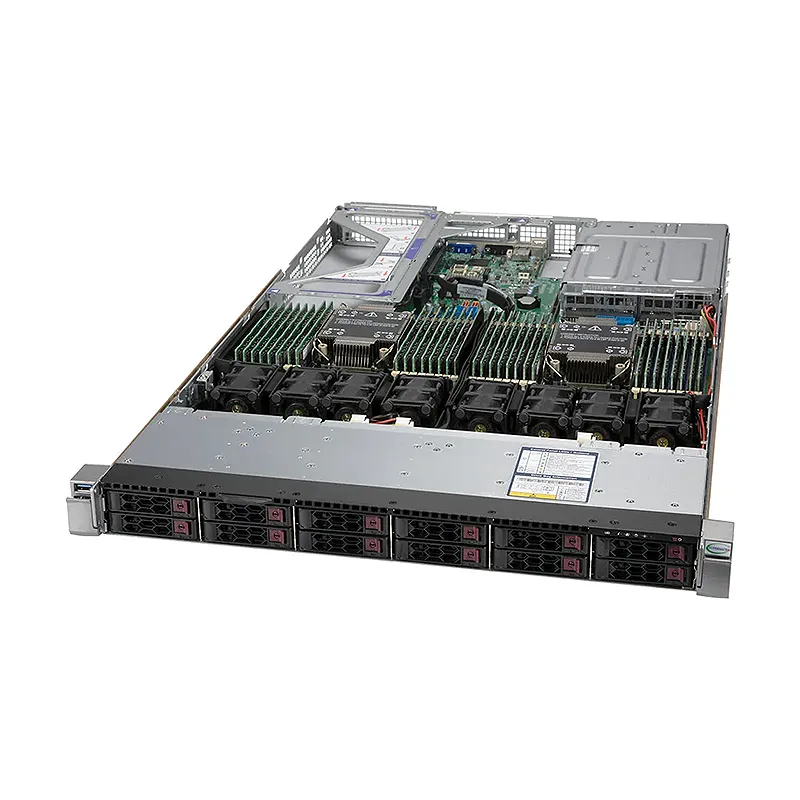

Ultra SuperServer SYS-120U-TNR (Complete System Only

1U Ultra with 12 NVMe/SAS/SATA bays

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Brand

Supermicro

Products Status

New

Applications

5G/Telco, Application Tier Service Provider, Cloud Computing, High End Enterprise Server, HPC, Software Defined Storage, Virtualization

Max GPU

2

CPU Type

3rd Gen Intel Xeon Scalable processors

Total PCI-E Slots

4

Drives

12

Drive Form Factors

2.5"

Form Factor

1U

Generation

X12

Interface

NVMe (Optional), SAS (Optional), SATA (Native)

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

LED

HDD activityLAN1 activityPower statusSystem information (overheat/UID)

Max GPU Count

Up to 2 double-width or 2 single-width GPUs

Supported GPU

A100View GPU Options, A16, A2, L4, NVIDIA PCIe: T4

Air Shroud

2 Air Shrouds

Network Connectivity
LAN

1 RJ45 1 GbE Dedicated BMC LAN port

BIOS Type

AMI 32MB SPI Flash EEPROM

Package

7.99" (H) x 23.81" (W) x 37.4" (D)

Depth

29.1" (739 mm)

Fans

8x 4cm heavy duty fans with optimal fan speed control

Height

1.7" (43 mm)

Buttons

Power On/OffUID button

Memory

Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options

Width

17.2" (437 mm)

Video

1 VGA port

Core Count

Up to 40C/80T; Up to 60MB Cache per CPU

NVMe

NVMe; RAID 0/1/5/10 supportView NVMe Options

Note

Supports up to 270W TDP CPUs (Air Cooled)

Weight

Gross Weight: 41 lbs (18.6 kg)Net Weight: 26.5 lbs (12.2 kg)

Drive Bays Configuration

Default: Total 12 bays(*SAS support may require additional storage controller and/or cables)

USB

2 USB 3.0 ports(rear)1 USB 3.0 port(front)

Available Color

Black front & silver body

PCI-Express (PCIe) Configuration

Default

CPU

Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors

Chipset

Intel C621A

Memory Voltage

1.2V

Environmental Spec.
DOM

DOM
