Product SKUs

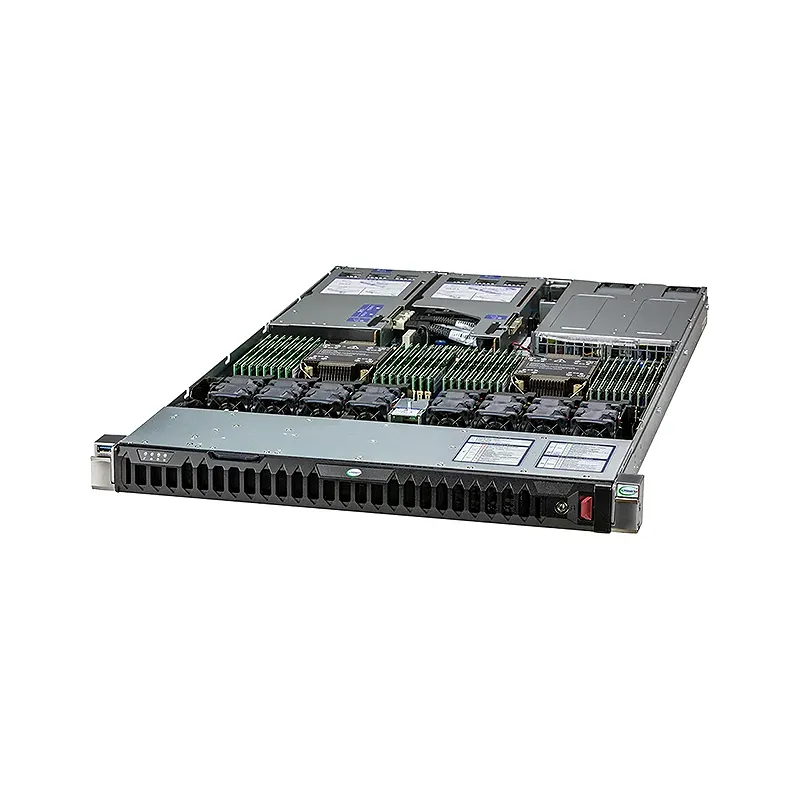

- SuperServerSYS-120H-TNR
Motherboard
- Super X12DHM-6
Processor
- CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 40C/80T; Up to 60MB Cache per CPU
GPU
- Max GPU Count
Up to 2 double-width GPUs
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 1GbE with Intel I350-AM2 (optional)
4 RJ45 1GbE with Intel I350-AM4 (optional)
4 SFP 1GbE with Intel I350-AM4 (optional)
2 RJ45 10GBASE-T with Intel X550-AT2 (optional)
2 SFP+ 10GbE with Intel X710-BM2 (optional)
4 SFP+ 10GbE with Intel XL710-BM1 (optional)
4 SFP+ 10GbE with Intel X710-TM4 (optional)
2 SFP28 25GbE with Broadcom BCM57414 (optional)
4 SFP28 25GbE (optional)
2 QSFP28 100GbE with Broadcom BCM57508 (optional)
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
1 USB 3.0 port(front) - Video
1 VGA port
System BIOS
- BIOS Type
AMI 256MB SPI Flash
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-HS119-R1K24P
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
29.4″ (747 mm)
- Package
8.1″ (H) x 23.8″ (W) x 40.6″ (D)
- Weight
Gross Weight: 49 lbs (22.2 kg)
Net Weight: 34 lbs (15.4 kg) - Available Color
Front Panel
- LED
HDD activity
LAN1 activity
Power
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 FHHL slot 2 PCIe 4.0 x16 FH/10.5″L slots 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 NVMe/SATA slots (M-key 2280/22110)
System Cooling
- Fans
8 counter-rotating 40x40x56mm Fan(s)
Power Supply
- 2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
