Product SKUs

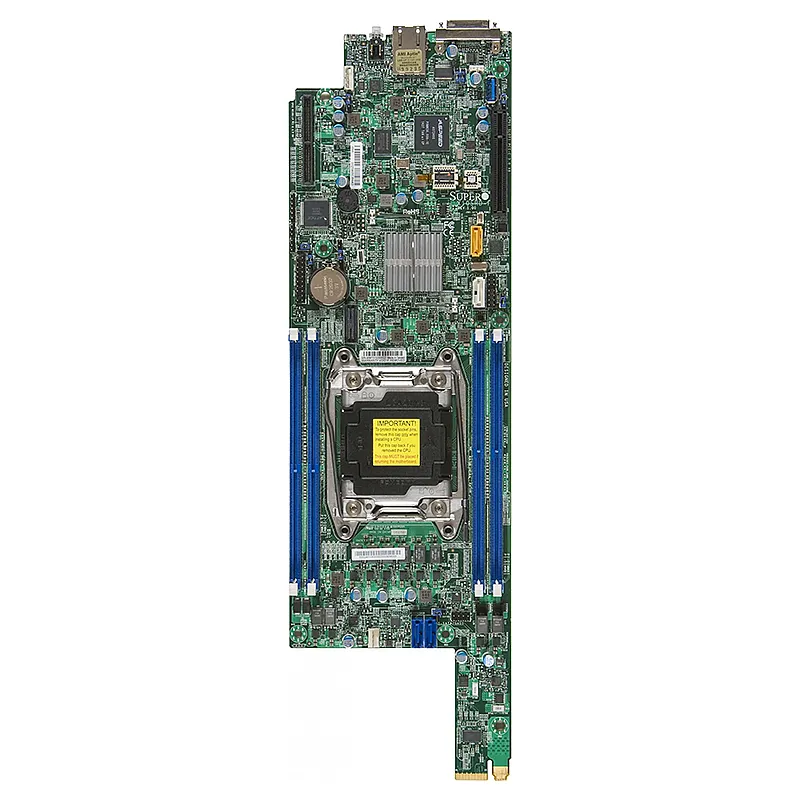

- MBD-X10SRD-F
X10SRD-F
Physical Stats
- Form Factor
Proprietary
- Dimensions
4.75″ x 15.95″ (12.07cm x 40.51cm)
Processor/Cache
- CPU
Intel Xeon Processor E5-1600 v3, Intel Xeon Processor E5-1600 v4, Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4.
Single Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W - Cores / Cache
Up to 22 cores / Up to 55MB cache
System Memory
- Memory Capacity
Up to 128GB Registered ECC RDIMM; Up to 256GB Registered ECC LRDIMM, in 4 DIMM slots4x 288-pin DDR4 DIMM slots
Up to 512GB ECC 3DS LRDIMM - Memory Type
2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
- DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C612
- SATA
SATA3 (6 Gbps) ports; RAID 0,11 SATA DOM
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC - Network Controllers
Intel i350, 2x Gigabit LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization
- Graphics
Aspeed AST2400 BMC
Input / Output
- LAN
2 RJ45 Gigabit Ethernet LAN ports
- USB
2 USB 3.0 ports (1 header + 1 Type A)
- Video Output
1 VGA port
- TPM
1 TPM Header
- Others
KVM: 1 VGA, 1 COM, and 2 USB 2.0 (with KVM dongle) ports
Expansion Slots
- PCI-E
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x8 (Micro Low Profile)
System BIOS
- BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features
Plug and Play (PnP)
APM 1.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
RTC (Real Time Clock) Wakeup
Management
- Power Configurations
ACPI / ACPM Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on
