Product SKUs
- SYS-7049P-TRT

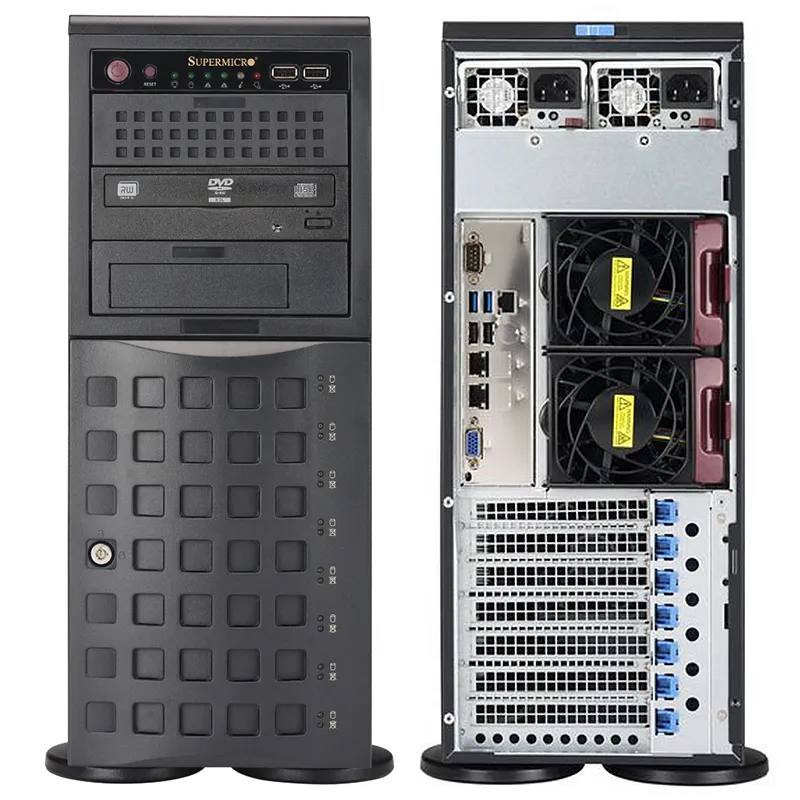

SuperServer 7049P-TRT ( Black )

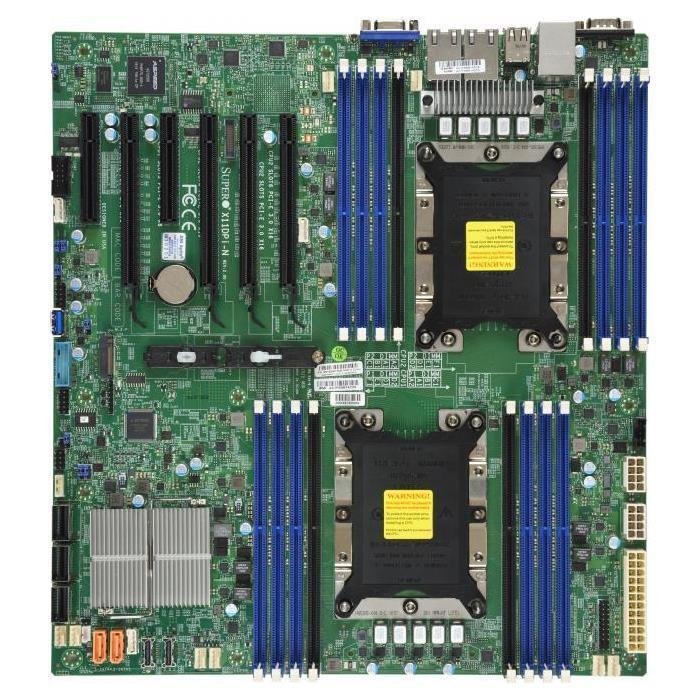

Motherboard
- Super X11DPi-NT
Processor
- CPU
Dual Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors , Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W - Cores
Up to 28 Cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel Optane DCPMM - Memory Type
2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
Intel C622 chipset
- SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
- Network Controllers
Intel X722 10GBase-T Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output - IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Video
ASPEED AST2500 BMC

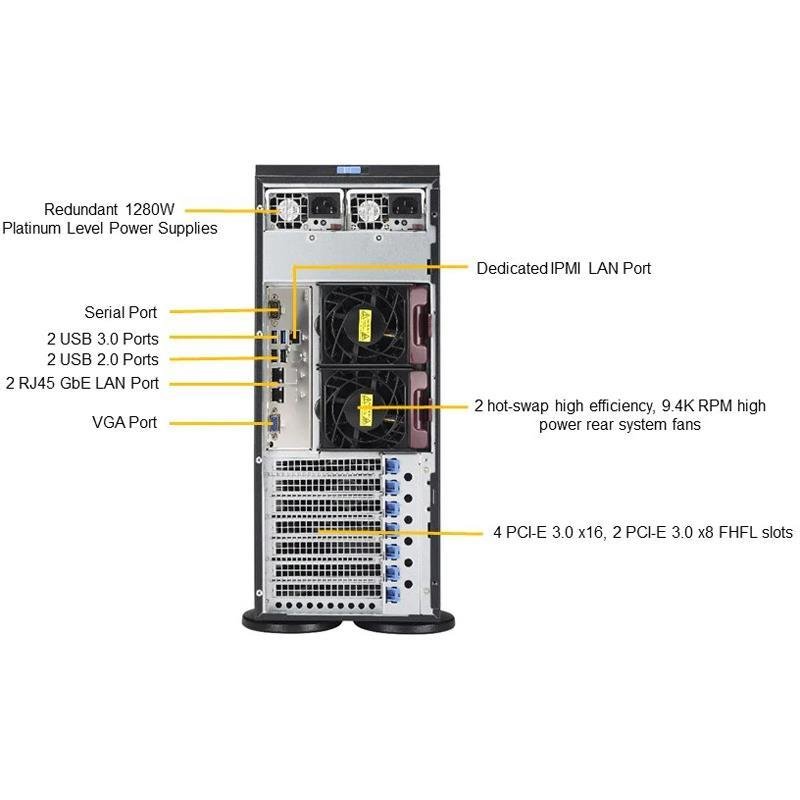

Input / Output
- SATA
8 SATA3 (6Gbps) ports
- LAN
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port - USB
Rear USB: 2 USB 3.0 + 2 USB 2.0
Front USB: 2 USB 3.0
USB Header: 1 Type A - Video
1 VGA port
- Serial Port / Header
2 Fast UART 16550 serial
2 COM Ports (1 rear, 1 header) - DOM
2 Super DOM (Disk on Module) ports
System BIOS
- BIOS Type
AMI UEFI
Management
- Power Configurations
ACPI Power Management
Chassis
- Form Factor
4U Rackmountable / Tower
Optional Rackmount Kit - Model
CSE-745BTS-R1K23B
Dimensions and Weight
- Height
17.8″ (452mm)
- Width
7.0″ (178mm)
- Depth
25.5″ (648mm)
- Package
24″ (H) x 14″ (W) x 26.5″ (D)
- Weight
Net Weight: 56 lbs (25.6 kg)
Gross Weight: 73.5 lbs (33.6 kg) - Available Colors
Black

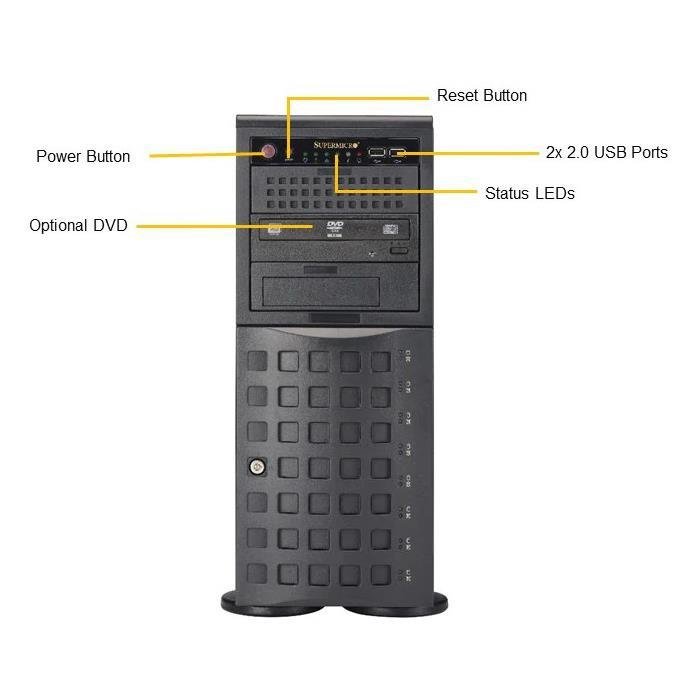

Front Panel
- Buttons
Power On/Off button
System Reset button - LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Power Fail LED - Ports
2 USB Ports
Expansion Slots
- PCI-Express
4 PCI-E 3.0 x16 slots
2 PCI-E 3.0 x8 slots
Support total of 6 Full-height AOC
Drive Bays
- Hot-swap

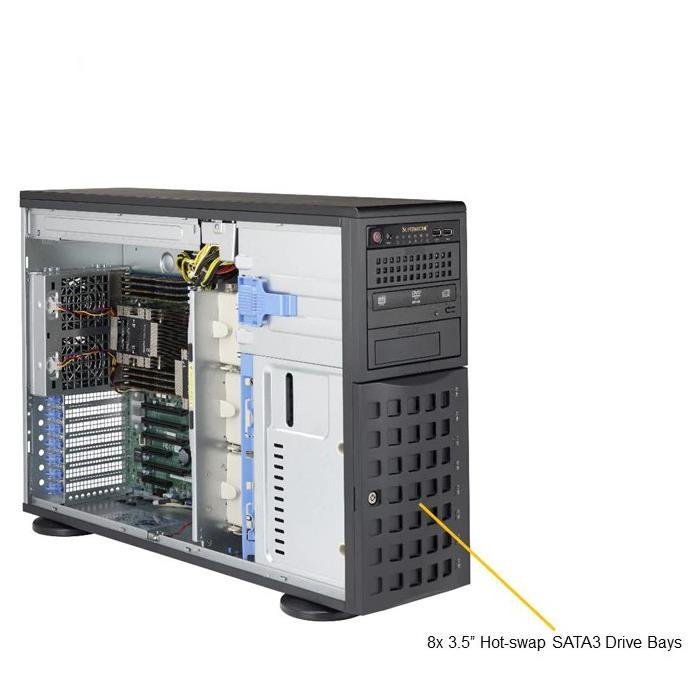

8 Hot-swap 2.5″/3.5″ SATA3 (6Gbps) drive bays
- Peripheral Bays
3 Peripheral 5.25″ drive bays
SAS / SATA Backplane
- SAS / SATA Hard Drive Backplane w/AMI MG9072
System Cooling
- Fans
3x 80mm high-performance fans
2x 80mm PWM Rear Chassis fans
Power Supply
- 1200W Redundant High-efficiency Power Supplies
- Total Output Power
1000W with Input 100 – 127Vac
1200W with Input 200 – 240Vac
1200W with Input 200 – 240Vdc (for CCC only) - Dimension
(W x H x L)76 x 40 x 336 mm - Input
50-60Hz
- +12V
Max: 83A & Min: 0A (100Vac-127Vac)
Max: 100A & Min: 0A (200Vac-240Vac)
