Product SKUs
- SYS-1029P-WTRT
SuperServer 1029P-WTRT ( Black )
Motherboard
- Super X11DDW-NT
Processor
- CPU
Dual Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors , Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W * - Cores
Up to 28 Cores
System Memory
- Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel Optane DCPMM - Memory Type
2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- Chipset
Intel C622 chipset
- SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
- Network Controllers
Dual LAN with 10Gbase-T from C622
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Video
ASPEED AST2500 BMC

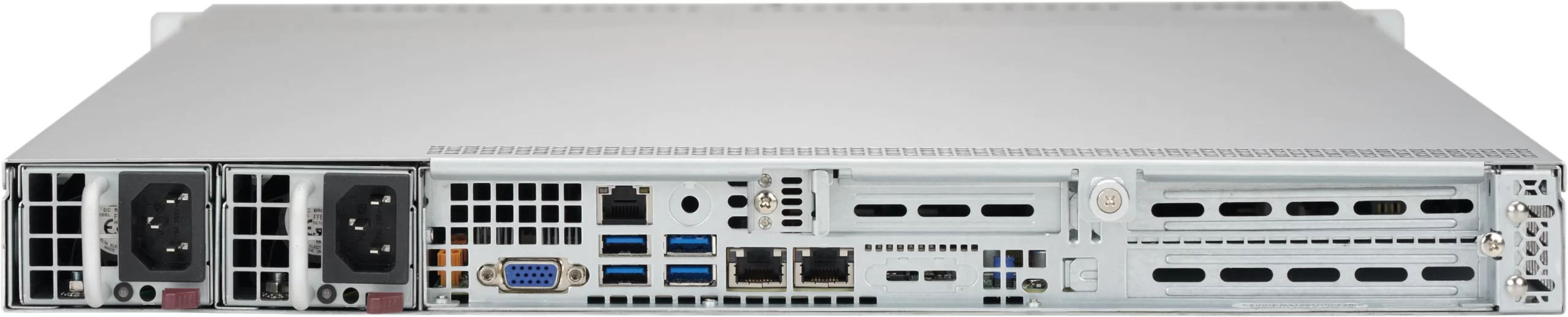

Input / Output
- SATA
8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports
- LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port - USB
6 USB 3.0 ports (4 rear, 2 front via header)
- Video
1 VGA port
- DOM
2 Super DOM (Disk on Module) ports
System BIOS
- BIOS Type
AMI 32Mb SPI Flash ROM
Management
- Power Configurations
ACPI / APM Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-116AC2-R706WB2
Dimensions and Weight
- Width
17.2″ (437mm)
- Height
1.7″ (43mm)
- Depth
23.5″ (597mm)
- Gross Weight
46 lbs (20.9kg)
- Available Colors
Black

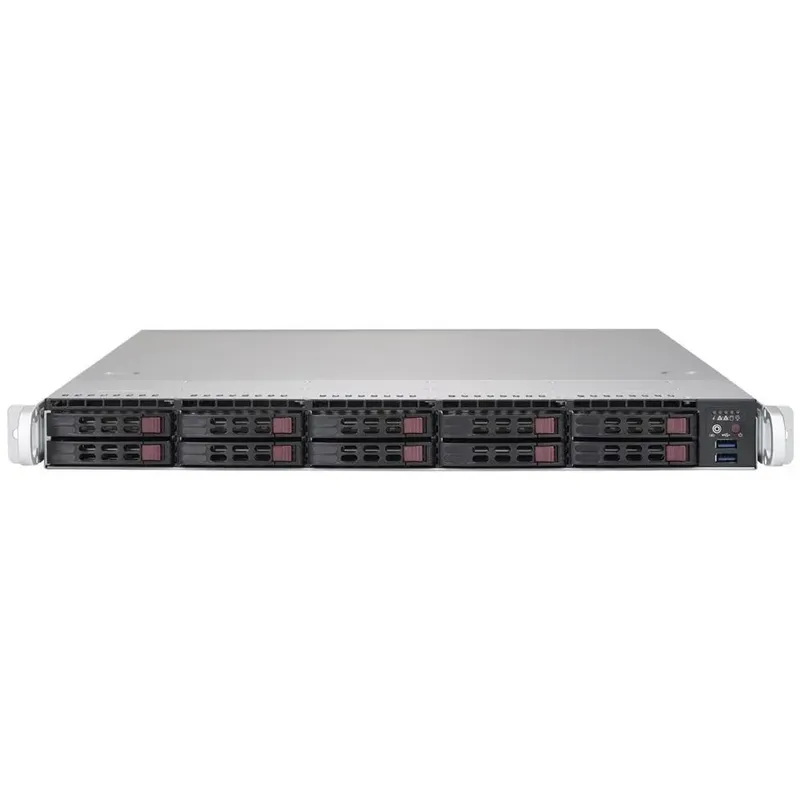

Front Panel
- Buttons
Power On/Off button
UID button - LEDs
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Expansion Slots
- PCI-Express
2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x8 (LP) slot
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E 3.0 x4 NVMe M.2 slot
Drive Bays
- Hot-swap
8 SATA3 (6Gbps) ports and 2 NVMe/SATA3 hybrid ports (connected to onboard storage controller)
Backplane
- SAS/SATA HDD Backplane
System Cooling
- Fans
4 Counter-rotating 4cm PWM fans, 2 fans for AOC cooling
AC/DC240V Input Redundant Power Supply
- 700W/750W Redundant Power Supplies with PMBus
- Total Output Power
700W/750W
- Dimension
(W x H x L)54.5 x 40.25 x 320 mm - Input
100 – 140Vac / 8 – 6A / 50-60Hz
200 – 240Vac / 4.5 – 3.8A / 50-60Hz
200 – 240Vdc / 4.5 – 3.8A (CCC Only) - +12V
Max: 58A / Min: 0.5A (100 – 140Vac)
Max: 62A / Min: 0.5A (200 – 240Vac)
Max: 62A / Min: 0.5A (200 – 240Vdc) (CB/CCC Only) - +5V sb
Max: 3A / Min: 0A
- Output Type
Gold Finger Connector Mating with Molex 45984-4343
