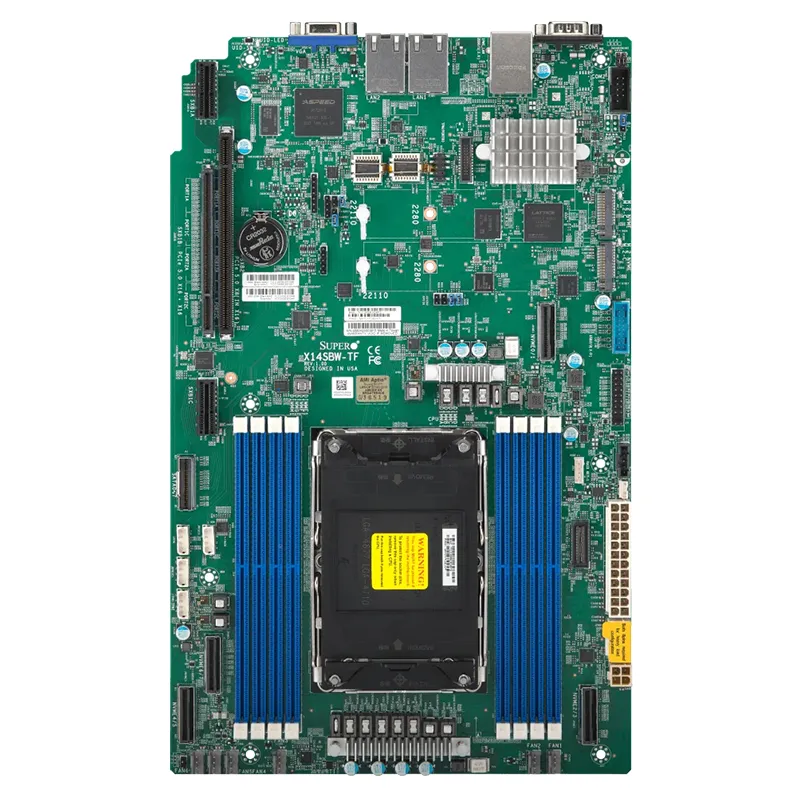

Supermicro MBD-X14SBW-TF

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon 6700-series processors with E-cores
Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core
Up to 144 (E) cores

System Memory

Memory Capacity
8 DIMM slots
Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
DIMM Sizes
32GB, 64GB, 96GB, 128GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 5.0 x8 Right Riser (in x16) slot,
1 PCIe 5.0 x32 Left Riser Slot,
4 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
M.2 Interface: 2 PCIe 5.0 x2
Form Factor: 2280/22110
Key: M-Key

System BIOS

BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM	1 TPM Header1 TPM TPM 2.0 onboard
Network Controllers	Dual LAN with 10GBase-T with Intel X550
M.2	M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 32GB, 64GB, 96GB
BIOS Type	AMI 64MB AMI UEFI
LAN	2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA D-Sub Connector port(s)
Dimension	8" x 13" (20.32cm x 33.02cm)
PCIe	1 PCIe 5.0 x32 Left Riser Slot, 1 PCIe 5.0 x8 Right Riser (in x16) slot, 4 PCIe 5.0 x8 PCIe5.0 MCIO connector
USB	4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Form Factor	Proprietary WIO
Memory Type	6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresSingle Socket E2 (LGA-4710) supported
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	8 SATA3 port(s)
Memory Capacity	8 DIMM slotsUp to 1TB ECC Registered RDIMM, DDR5-6400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 144 (E) cores
