Product SKUs

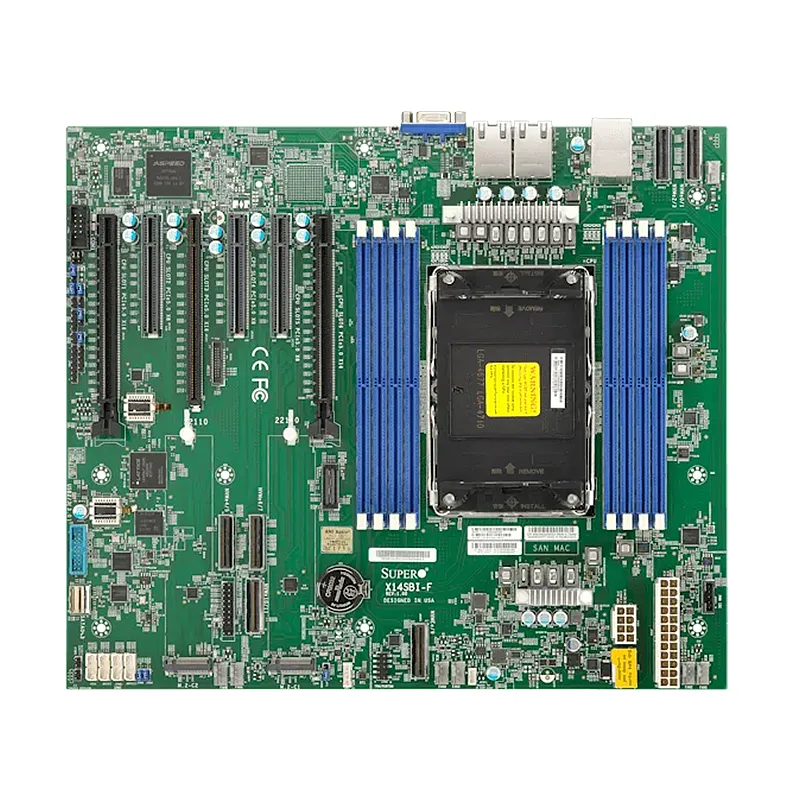

- MBD-X14SBI-F
Physical Stats
- Form Factor
ATX
- Dimension
12.3″ x 10.5″ (31.24cm x 26.67cm)
Processor
- CPU
Intel Xeon 6700-series processors with E-cores
Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP - Core
Up to 144 (E) cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s - Memory Type
6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
- DIMM Sizes
32GB, 64GB, 96GB, 128GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- SATA
ASMediaASM1164 controller for 4 SATA3 ports
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Dual LAN with 1GbE with Intel I210
Input / Output
- SATA
4 SATA3 port(s)
- LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port - USB
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
- Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
1 TPM TPM 2.0 onboard
Expansion Slots
- PCIe
3 PCIe 5.0 x8,
3 PCIe 5.0 x16,
6 PCIe 5.0 x8 PCIe5.0 MCIO connector - M.2
M.2 Interface: 2 PCIe 5.0 x2
Form Factor: 22110
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
