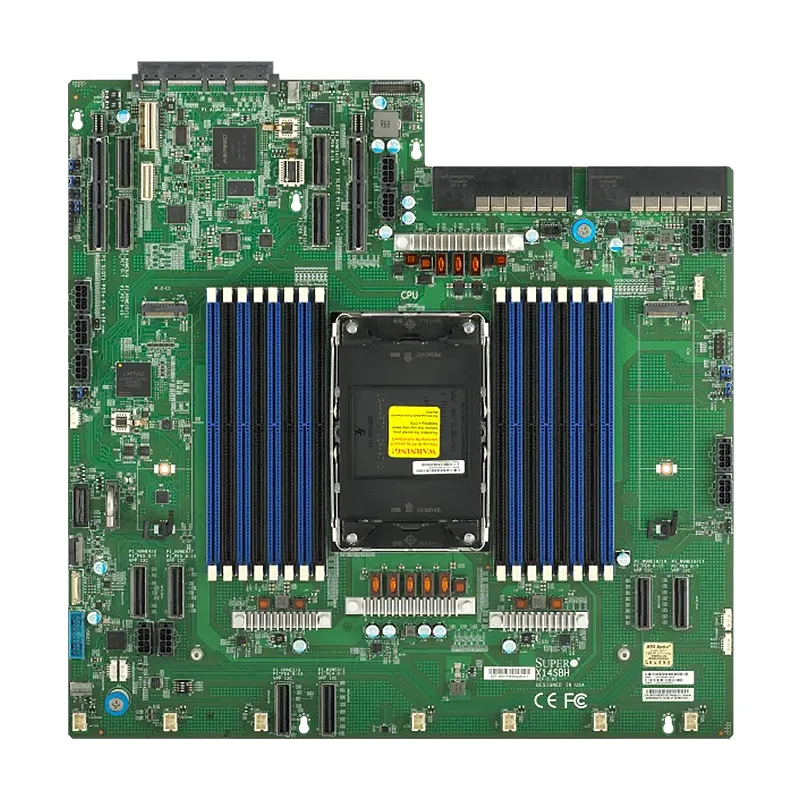

Supermicro MBD-X14SBH

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon 6700-series processors with E-cores
Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core
Up to 144 (E) cores

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes
32GB, 64GB, 96GB, 128GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 5.0 x16 AIOM,
2 PCIe 5.0 x16 4C slots,
10 PCIe 5.0 x8 MCIO connector
M.2
M.2 Interface: 2 PCIe 5.0 x2
Form Factor: 2280/22110/25110
Key: M-Key

System BIOS

BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM	1 TPM Header1 TPM TPM 2.0 onboard
Network Controllers	AIOM for LAN
M.2	M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110/25110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 32GB, 64GB, 96GB
BIOS Type	AMI 64MB AMI UEFI
LAN	1 AIOM
Dimension	13" x 12.89" (33.02cm x 32.74cm)
PCIe	1 PCIe 5.0 x16 AIOM, 10 PCIe 5.0 x8 MCIO connector, 2 PCIe 5.0 x16 4C slots
USB	2 USB 3.2 Gen1 port(s) (2 via header)
Form Factor	Proprietary
Memory Type	6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresSingle Socket E2 (LGA-4710) supported
Memory Capacity	16 DIMM slotsUp to 2TB ECC Registered RDIMM, DDR5-6400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 144 (E) cores
