Product SKUs

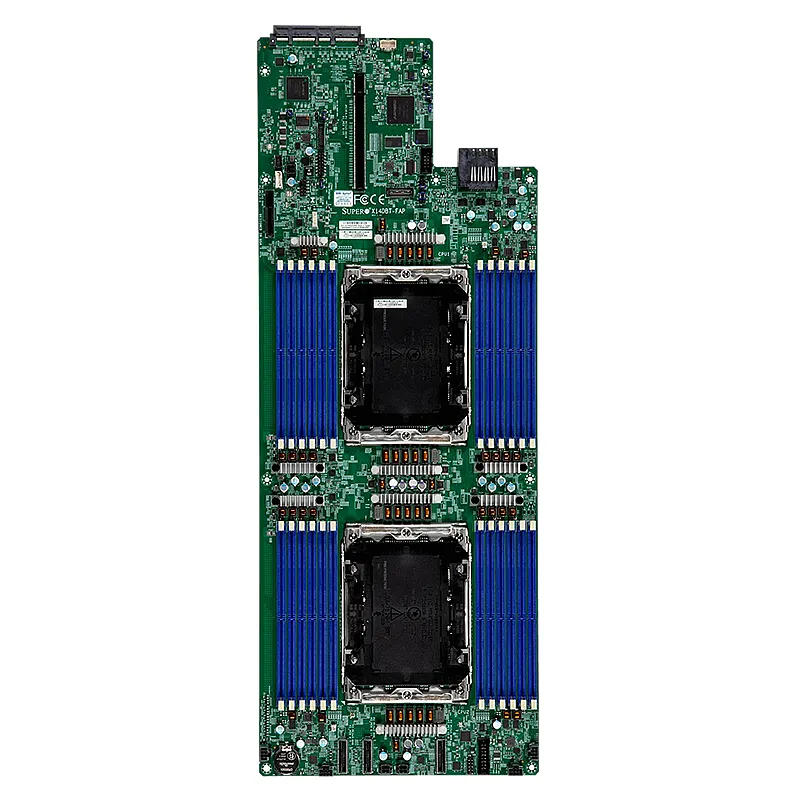

- MBD-X14DBT-FAP
Physical Stats
- Form Factor
Proprietary
- Dimension
8.7″ x 27″ (22.1cm x 68.58cm)
Processor
- CPU
Intel Xeon 6900-series processors with P-cores
Dual Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP - Core
Up to 128 (P) cores
System Memory
- Memory Capacity
24 DIMM slots
Up to 6TB ECC Registered MRDIMM, DDR5-8800MT/s; Up to 6TB 3DS ECC Registered RDIMM, DDR5-6400MT/s - Memory Type
ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
- DIMM Sizes
MRDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
RDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- Network Controllers
AIOM for LAN
Input / Output
- LAN
1 AIOM
- USB
2 USB 2 port(s) (2 Type A)
- Video Output
1 VGA (Rear/Internal) port(s)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 5.0 x16 AIOM Networking Slot, AIOM slots Superset of OCP 3.0 Expansion,
1 PCIe 5.0 x16 (in x16 slot), support LP PCIe card,
2 PCIe 5.0 x8 MCIO connector, support FHHL PCIe card,
1 PCIe 5.0 x8 Riser Slot, For M.2 adapter to support two NVMe M.2 devices,
1 PCIe 5.0 x8 MCIO connector, For cabling to storage backplane - M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 22110
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
