Product SKUs

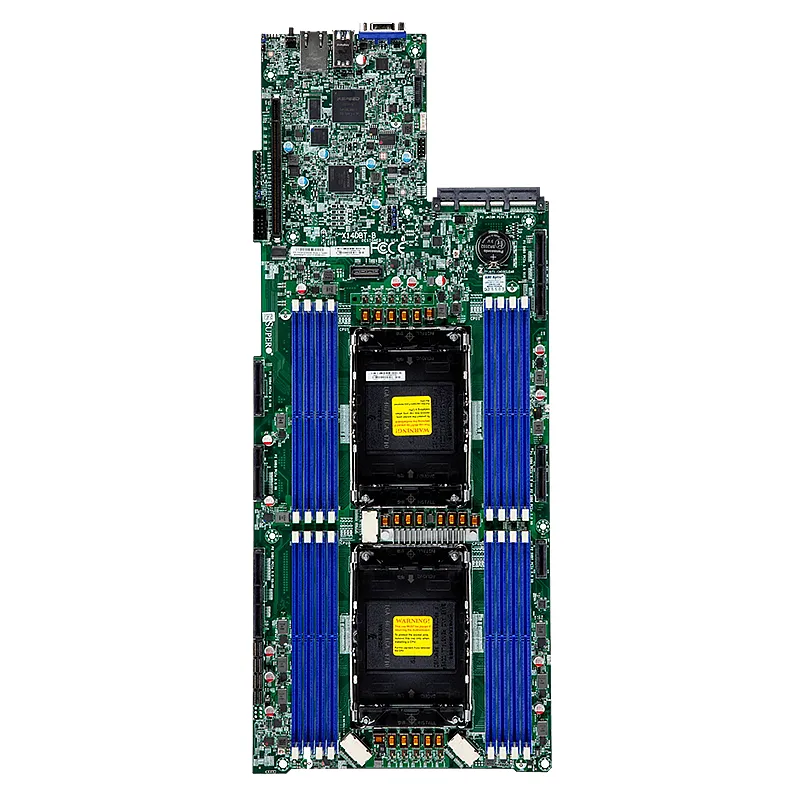

- MBD-X14DBT-B
Physical Stats
- Form Factor
Proprietary
- Dimension
7.617″ x 18.86″ (19.347cm x 47.8cm)
Processor
- CPU
Intel Xeon 6700-series processors with E-cores
Dual Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP, 4 UPI up to 24 GT/s - Core
Up to 144 (E) cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 2TB 3DS ECC Registered RDIMM, DDR5-6400MT/s - Memory Type
ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
- DIMM Sizes
RDIMM: 32GB, 64GB, 96GB, 128GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- Network Controllers
Single LAN
AIOM for LAN
Input / Output
- USB
2 USB 3 port(s) (2 rear type A)
- Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 Serial Port)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 5.0 x16 for Left riser card support,
1 PCIe 5.0 x16 for Right riser card support,
1 PCIe 5.0 x4 (in x16 slot), For M.2 adapter to support two NVMe M.2 devices,
1 PCIe 5.0 x8 (in x16 slot), For M.2 adapter to support two NVMe M.2 devices,
1 PCIe 5.0 x16 AIOM, OCP 3.0 compliant,
1 PCIe 5.0 x16 (in x16 slot), For NVMe SCC storage card,
1 PCIe 5.0 x8, For NVMe SCC storage card,
1 PCIe 5.0 x8, For SAS SCC storage card,
1 PCIe 5.0 x8 M.2 Slot, For M.2 adapter to support RAID two NVMe M.2 devices,
3 PCIe 5.0 x8 NS connector, For cabling to SCC storage card - M.2
M.2 Interface: 4 PCIe 5.0 x4, RAID 0 & 1
Form Factor: 22110
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
