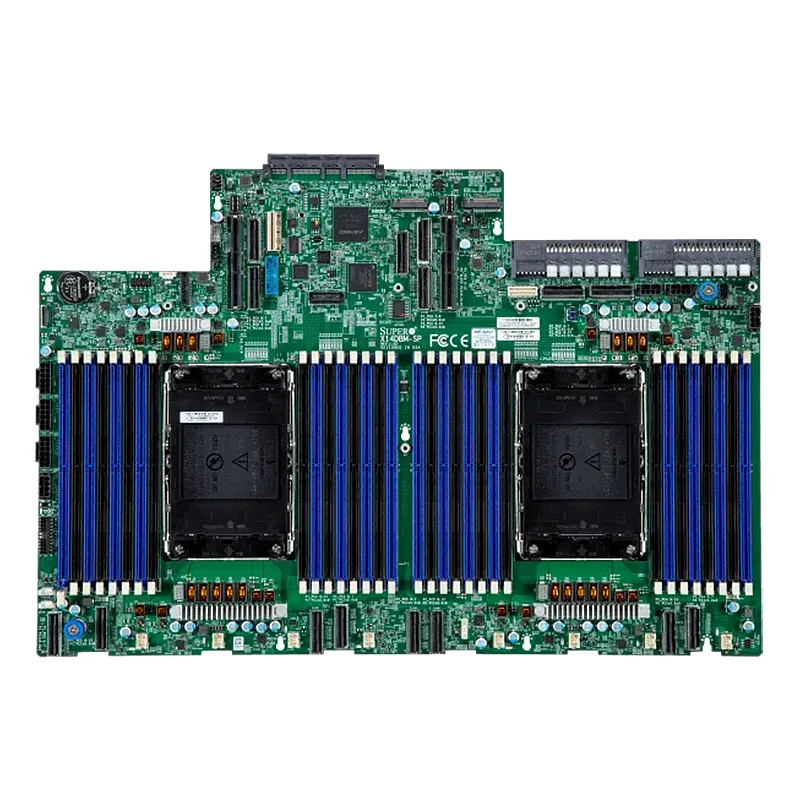

Supermicro MBD-X14DBM-SP

* NOTE: Image may not exactly match the product

Supermicro MBD-X14DBM-SP

$Quote1 Piece(MOQ)

SKU MBD-X14DBM-SP Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X14DBM-SP

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    17″ x 11.5″ (43.18cm x 29.21cm)

Processor

  • CPU
    Intel Xeon 6700-series processors with E-cores
    Dual Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
  • Core
    Up to 144 (E) cores

System Memory

  • Memory Capacity
    32 DIMM slots
    Up to 4TB ECC Registered RDIMM, DDR5-6400MT/s
  • Memory Type
    ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
  • DIMM Sizes
    RDIMM: 32GB, 64GB, 96GB, 128GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • Network Controllers

Expansion Slots

  • PCIe
    15 PCIe 5.0 x8 MCIO connector
  • M.2
    M.2 Interface: 2 PCIe 5.0 x2
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
M.2

M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110Key: M-Key
Chipset

System on Chip
DIMM Sizes

128GB, 64GB, 96GB, RDIMM: 32GB
BIOS Type

AMI 64MB AMI UEFI
Dimension

17" x 11.5" (43.18cm x 29.21cm)
PCIe

15 PCIe 5.0 x8 MCIO connector
Form Factor

Proprietary
Memory Type

ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
Application

Server
Memory Voltage

1.1V
CPU

CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresDual Socket E2 (LGA-4710) supported
Memory Capacity

32 DIMM slotsUp to 4TB ECC Registered RDIMM, DDR5-6400MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 144 (E) cores
