Product SKUs

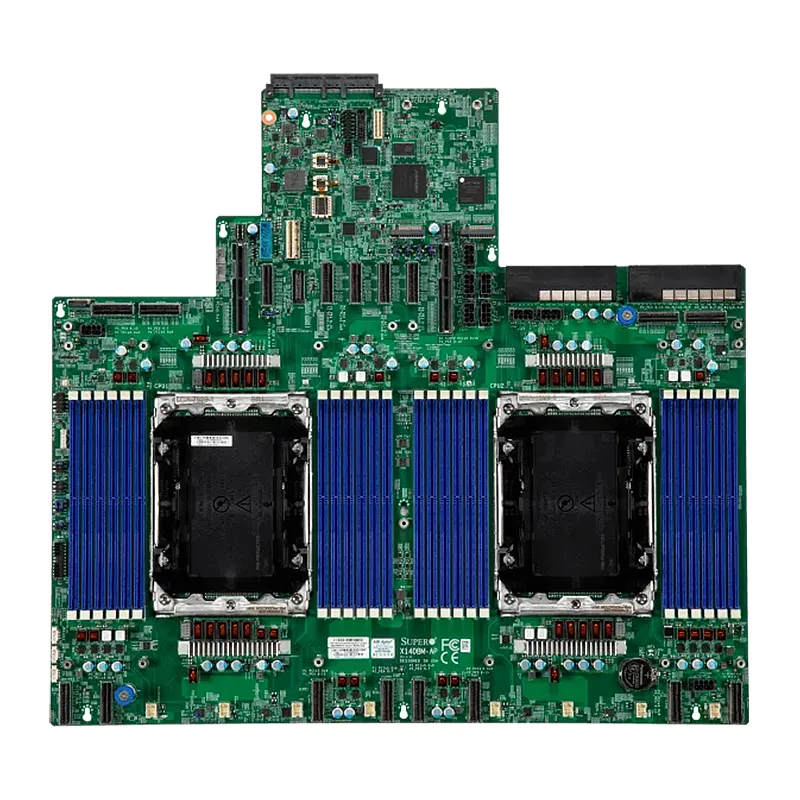

- MBD-X14DBM-AP
Physical Stats
- Form Factor
Proprietary
- Dimension
17″ x 15.565″ (43.18cm x 39.54cm)
Processor
- CPU
Dual Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
- Core
Up to 288 (E) cores
System Memory
- Memory Capacity
24 DIMM slots
Up to 6TB ECC Registered MRDIMM, DDR5-8800MT/s; Up to 6TB 3DS ECC Registered RDIMM, DDR5-6400MT/s - Memory Type
ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
- DIMM Sizes
MRDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
RDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- Network Controllers
Expansion Slots
- PCIe
16 PCIe 5.0 x8 MCIO connector
- M.2
M.2 Interface: 2 PCIe 5.0 x2
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
