| BIOS Features | ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9 |
|---|---|
| TPM | 1 TPM Header1 TPM TPM 2.0 onboard |
| M.2 | M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | System on Chip |
| DIMM Sizes | 128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB |
| BIOS Type | AMI |
| LAN | 2 AIOM |
| Dimension | 16.66" x 13.7" (42.3164cm x 34.798cm) |
| PCIe | 1 PCIe 5.0 x8 (in x16 slot), 2 PCIe 5.0 x16 AIOM Slot, 4 PCIe 5.0 x16, 8 PCIe 5.0 x8, AIOM slots Superset of OCP 3.0 Expansion |
| USB | 1 USB 3.2 Gen1 port(s) (1 type A) |
| Form Factor | OCP M-FLW |
| Memory Type | 6400 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 6400 MT/s (1DPC) or 5200MT/s (2DPC) |
| Application | Server |
| Memory Voltage | 1.1V |
| CPU | CPU TDP supports Up to 350W TDP, Dual Socket E2 (LGA-4710) supported |
| Memory Capacity | 32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-6400MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 144 (E) cores |

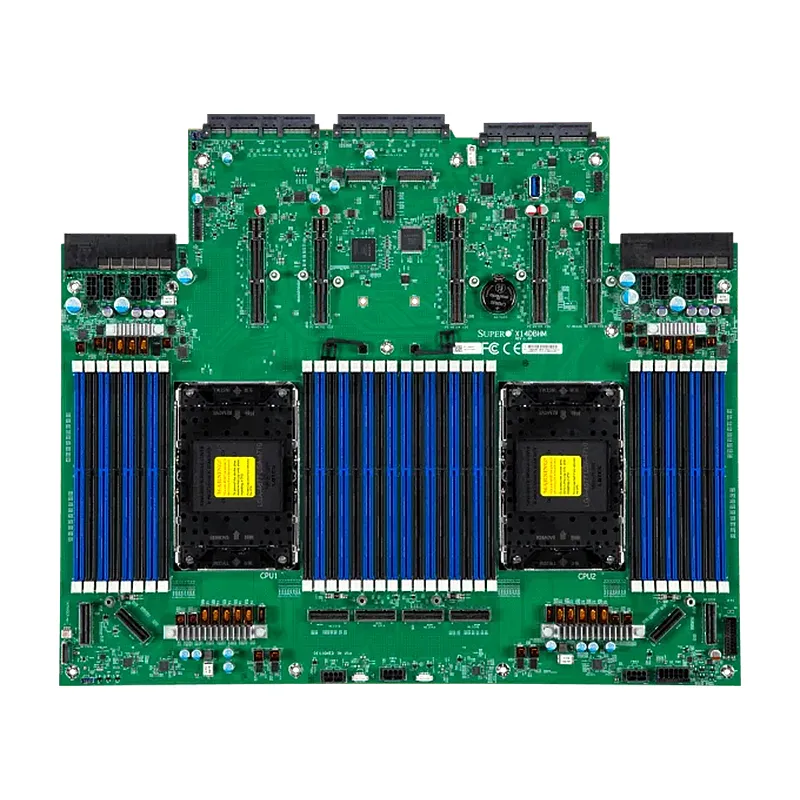

* NOTE: Image may not exactly match the product
Supermicro MBD-X14DBHM
