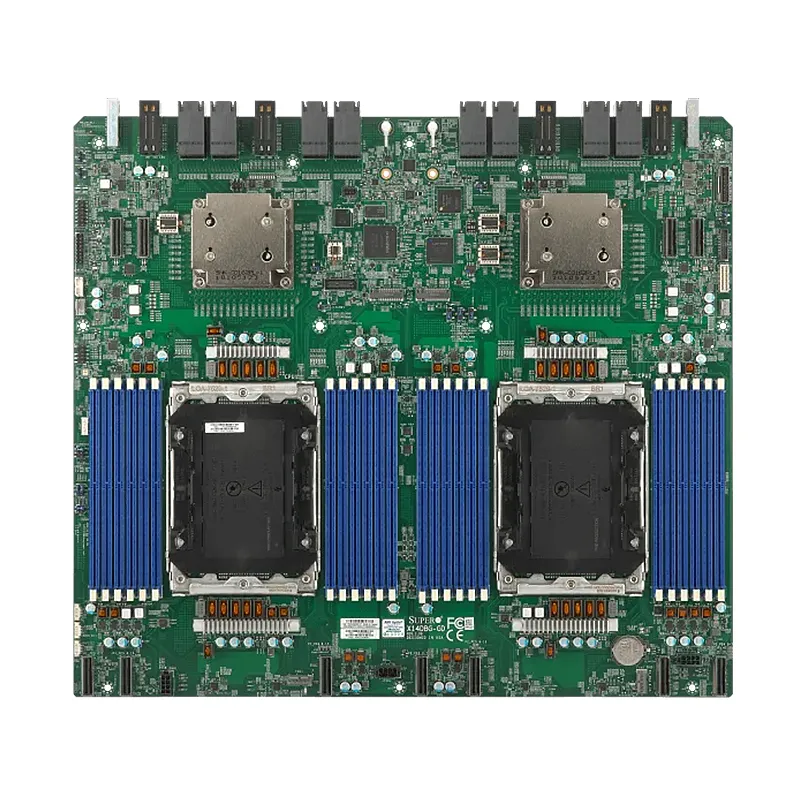

Supermicro MBD-X14DBG-GD

* NOTE: Image may not exactly match the product

Supermicro MBD-X14DBG-GD

$Quote1 Piece(MOQ)

SKU MBD-X14DBG-GD Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X14DBG-GD

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    17″ x 14.96″ (43.18cm x 38cm)

Processor

  • CPU
    Intel Xeon 6900 series Processors
    Dual Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
  • Core
    Up to 128 (P) cores

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 6TB 3DS ECC RDIMM, DDR5-6400MT/s
  • Memory Type
    6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
  • DIMM Sizes
    16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    RDIMM: 16GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • Memory Voltage
    1.1V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    System on Chip
  • Network Controllers

Expansion Slots

  • PCIe
    4 PCIe 5.0 x8 MCIO connector, 8x 2.5 NVMe Drives,
    6 PCIe 5.0 x8 MCIO connector, 2x PCIe 5.0 x16/2x PCIe 5.0×8 via PCIe expansion slot
  • M.2
    M.2 Interface: 2 PCIe 5.0 x2, RAID 0 & 1
    Form Factor: 2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 64MB AMI UEFI
  • BIOS Features
    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9
BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
M.2

M.2 Interface: 2 PCIe 5.0 x2, RAID 0 & 1Form Factor: 2280/22110Key: M-Key
Chipset

System on Chip
DIMM Sizes

128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB
BIOS Type

AMI 64MB AMI UEFI
Dimension

17" x 14.96" (43.18cm x 38cm)
PCIe

2x PCIe 5.0 x16/2x PCIe 5.0×8 via PCIe expansion slot, 4 PCIe 5.0 x8 MCIO connector, 6 PCIe 5.0 x8 MCIO connector, 8x 2.5 NVMe Drives
Form Factor

Proprietary
Memory Type

6400 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 6400 MT/s (1DPC) or 5200MT/s (2DPC)
Application

Server
Memory Voltage

1.1V
CPU

CPU TDP supports Up to 500W TDP, Intel Xeon 6900 series ProcessorsDual Socket BR (LGA-7529) supported
Memory Capacity

24 DIMM slotsUp to 6TB 3DS ECC RDIMM, DDR5-6400MT/s
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 128 (P) cores
