Product SKUs

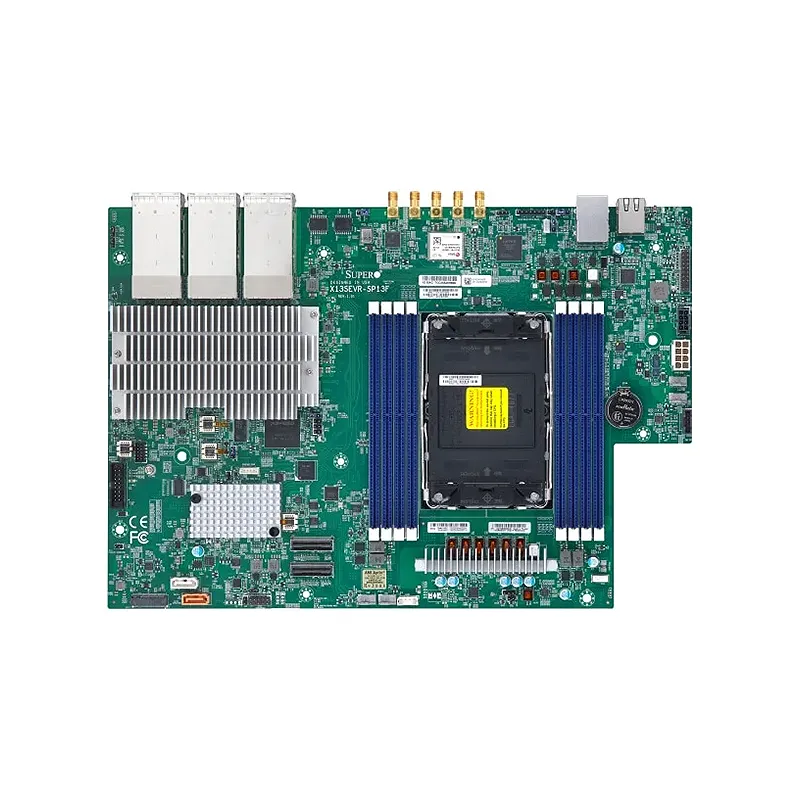

- MBD-X13SEVR-SP13F
Physical Stats
- Form Factor
Proprietary
- Dimension
13.94″ x 9.6″ (35.41cm x 24.38cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 225W TDP - Core
Up to 32 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 2 SATA3 ports; RAID 0,1
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Single LAN with Intel i210 Gigabit Ethernet Controller
12 LAN with Intel Ethernet Controller E810-CAM1
Input / Output
- SATA
2 SATA3 port(s)
- USB
2 USB 3.2 Gen1 port(s) (2 type A)
- Video Output
1 Header port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header & Chip both
- Others
1 Dry contact
5 SMA 1PPS & GNSS with 1 for GNSS input
Expansion Slots
- PCIe
2 PCIe 5.0 x8 MCIO connector, For RSC-S-68G5 to support FHHL PCIe Card
- M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
32MB AMI UEFI
- BIOS Features
ACPI 6.5
SMBIOS 3.6
UEFI 2.9
Plug and Play (PnP)
PCI FW 3.3
Management
- System Management Software
IPMI 2.0
- Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery
