Product SKUs

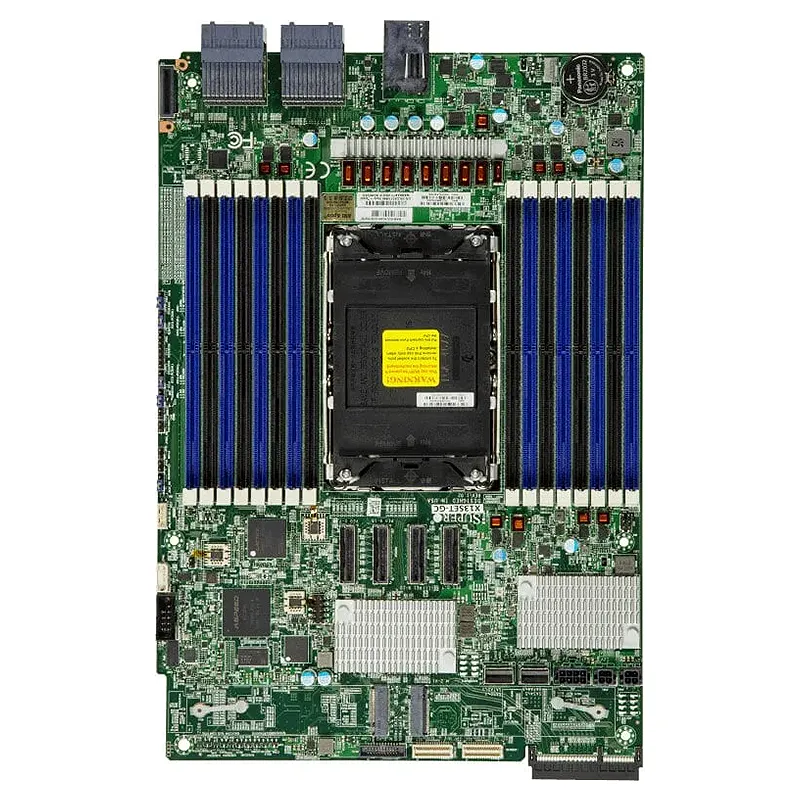

- MBD-X13SET-GC
Physical Stats
- Form Factor
Proprietary GrandTwin
- Dimension
8.53″ x 12.42″ (21.67cm x 31.55cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
*BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors - Core
Up to 64 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
**24GB & 48GB DIMM only support 1 DPC.
*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU. - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
- DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C741
- SAS
Broadcom 3808 SAS3 controller for 6 SAS3 (12 Gbps) ports
- IPMI
ASPEED AST2600 BMC
- Network Controllers
AIOM for LAN
Input / Output
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
- M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8 or above
