| BIOS Features | ACPI 6.4SMBIOS 3.5UEFI 2.8 or above |
|---|---|
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 1GbE with Intel I210 |
| M.2 | M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C741 |
| DIMM Sizes | 128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB |
| BIOS Type | AMI UEFI |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA D-Sub Connector port(s) |
| DOM | DOM |
| Dimension | 12.3" x 10.1" (31.24cm x 25.65cm) |
| PCIe | 2 PCIe 5.0 x16, 2 PCIe 5.0 x8 PCIe5.0 MCIO connector, 3 PCIe 5.0 x8 |
| USB | 2 USB 2.0 port(s) (2 rear)4 USB 3.2 Gen1 port(s) (2 rear; 1 via header; 1 type A) |
| Form Factor | E-ATX |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Memory Voltage | 1.1V |
| CPU | 5th Gen Intel XeonSingle Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP |
| Serial Port | 1 COM Port(s) (1 header) |
| SATA | 10 SATA3 (6Gbps) port(s) |
| Memory Capacity | 8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s**24GB & 48GB DIMM only support 1 DPC.*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU. |
| Error Detection | Corrects single-bit errors |
| Core | Up to 64 cores |

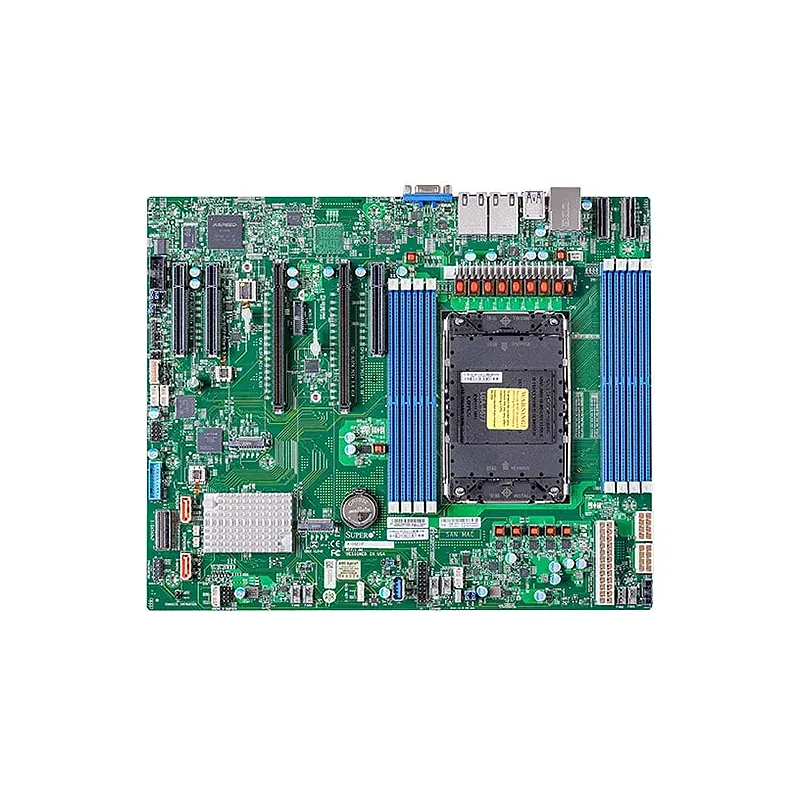

* NOTE: Image may not exactly match the product
Supermicro MBD-X13SEI-F
