Product SKUs

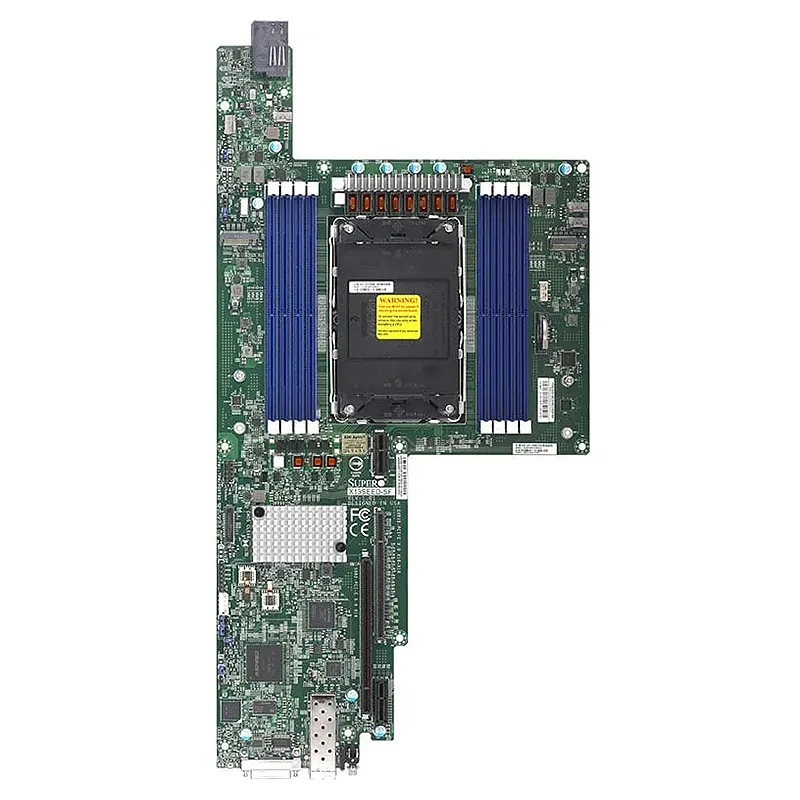

- MBD-X13SEED-SF
Physical Stats
- Form Factor
Proprietary
- Dimension
16.36″ x 8.53″ (41.56cm x 21.66cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP - Core
Up to 64 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C741
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Single LAN with Intel i210 Gigabit Ethernet Controller
Input / Output
- USB
2 USB 2 port(s) (2 type A Via KVM connector)
- Video Output
1 VGA port(s) Via KVM connector
- Serial Port
1 COM Port(s) (1 Serial Port Via KVM connector)
- TPM
1 TPM Header & Chip both
Expansion Slots
- PCIe
1 PCIe 5.0 x16 Right Riser Slot, support LP PCIe card,
2 PCIe 5.0 x16 Left Riser Slot, support FHHL PCIe card - M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
32MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
- Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery
