| TPM | 1 TPM Header |
|---|---|
| M.2 | 22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280 |
| Chipset | Intel C741 |
| DIMM Sizes | 128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
| Video Output | VGA D-Sub Connector port(s) |
| Dimension | 6.4" x 17.2" (16.256cm x 43.688cm) |
| PCIe | 2 PCIe 5.0 x16, 2 PCIe 5.0 x8 |
| USB | 2 USB 3.1 Gen1 port(s) (2 rear) |
| Form Factor | Proprietary SBB |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Memory Voltage | 1.1V |
| CPU | 5th Gen Intel XeonSingle Socket LGA-4677 (E) supported, CPU TDP supports Up to 350W TDP |
| Serial Port | 1 COM Port(s) (1 header) |
| SATA | 10 SATA3 (6Gbps) port(s) |
| Memory Capacity | 8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel Xeon-SP CPU. |
| Error Detection | Corrects single-bit errors |
| Core | Up to 64 cores |
* NOTE: Image may not exactly match the product

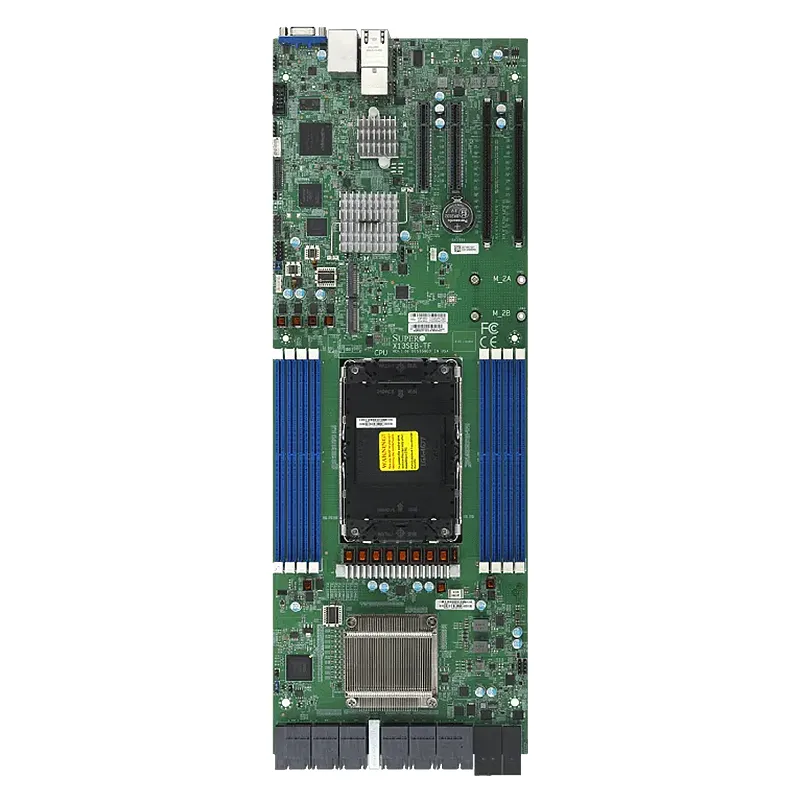

Supermicro MBD-X13SEB-TF
