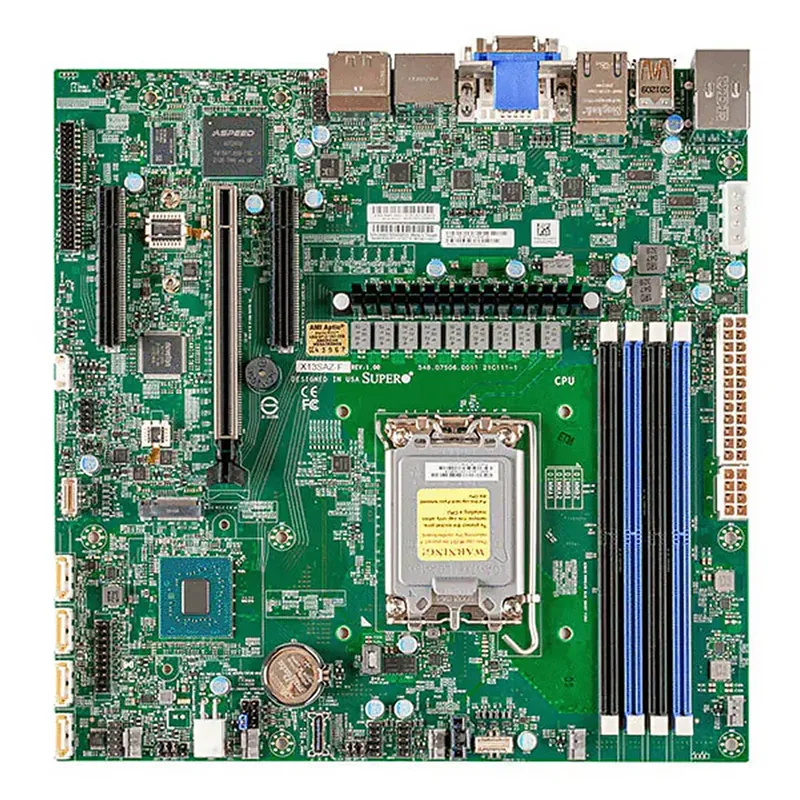

Supermicro MBD-X13SAZ-F-B Server Motherboard

Product SKUs
MBD-X13SAZ-F-B

Processor
CPU	5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
Core	Up to 64 cores

System Memory
Memory Capacity	8 DIMM slots Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s *24GB & 48GB DIMM only support 1 DPC. 24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU.
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes	16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel® C741
SATA	Intel® C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	1 Aspeed AST2600 BMC port(s)
Network Controllers	Dual LAN with 1GbE with Intel® I210

Input / Output
SATA	10 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 port(s) (2 rear) 4 USB 3.2 Gen1 port(s) (2 rear; 1 via header; 1 type A)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	2 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header

Expansion Slots
PCIe	2 PCIe 5.0 x16, 3 PCIe 5.0 x8, 2 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2	M.2 Interface: 2 PCIe 5.0 x4 Form Factor: 2280/22110 Key: M-Key

Management
Software	Redfish API Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	7x 4-pin fan headers (up to 7 fans) Fan speed control Overheat LED indication 7 fans with tachometer status monitoring
Other Features	WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

Operating Environment
Operating Temperature Range	0°C – 50°C (32°F – 122°F)
Non-Operating Temperature Range	-20°C – 60°C (-4°F – 140°F)
Operating Relative Humidity Range	10% – 85% (non-condensing)
Non Operating Relative Humidity Range	10% – 95% (non-condensing)

14th/13th/12th Generation Intel? Core? i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP (**bios v3.x or above)
Intel? R680E
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
- 1 PCIe 5.0 x16 slot,
- 2 PCIe 4.0 x4 slots,
- 1 PCIe 4.0 x4 OCulink port
- M.2 Interface:?1 PCIe 4.0 x4
- M.2 Form Factor:?2280/22110
- M.2 Key:?M-Key
Dual 2.5 Gigabit LAN with Intel? Ethernet i225LM LAN controller [AMT/vPro]
Intel? R680E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 Independent Displays (1 VGA port, 2 DP++ ports, 1 HDMI 2.0b port, 1 DVI – D port)
Supports 12V DC power input
Onboard TPM2.0
