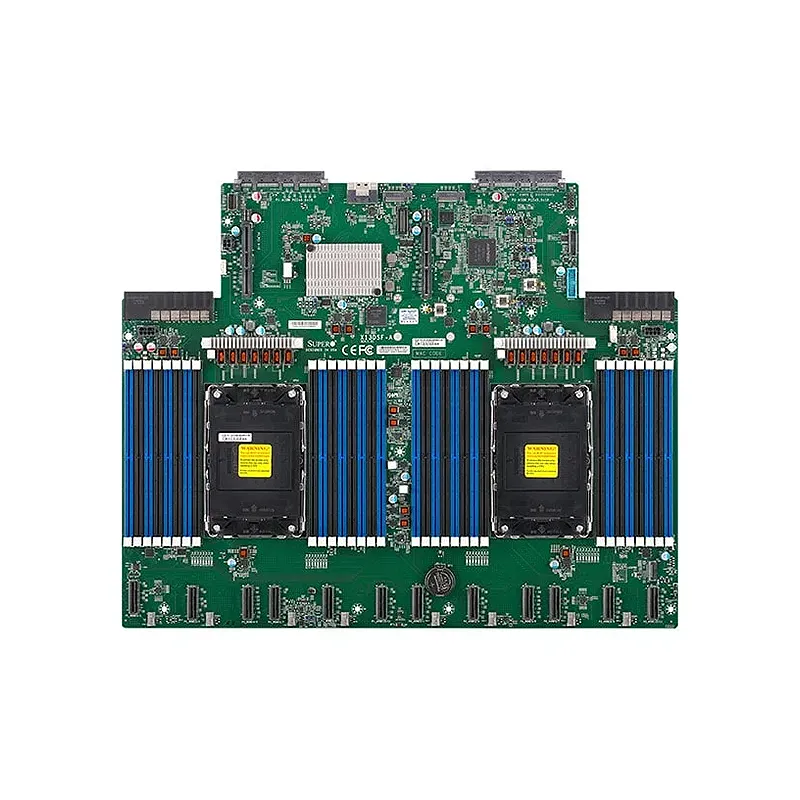

Supermicro MBD-X13DSF-A

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Dual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SP XCC, and SP MCC SKUs are supported
Core
Up to 64 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM	1 TPM Header
M.2	M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB
BIOS Type	AMI 32MB AMI UEFI
Dimension	17" x 13.64" (43.18cm x 34.65cm)
PCIe	2 PCIe 5.0 x16 AIOM, 2 PCIe 5.0 x16 Right Riser Slot
USB	2 USB 3 port(s) (2 via header)
Form Factor	Proprietary
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Others	12 MCIO PCIe 5.0 x8Rear I/O Module Connector for AOM-DSF-IO
Memory Voltage	1.1V
CPU	5th Gen Intel XeonDual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SATA	4 SATA3 (6Gbps) port(s)
Memory Capacity	32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 64 cores
