Product SKUs

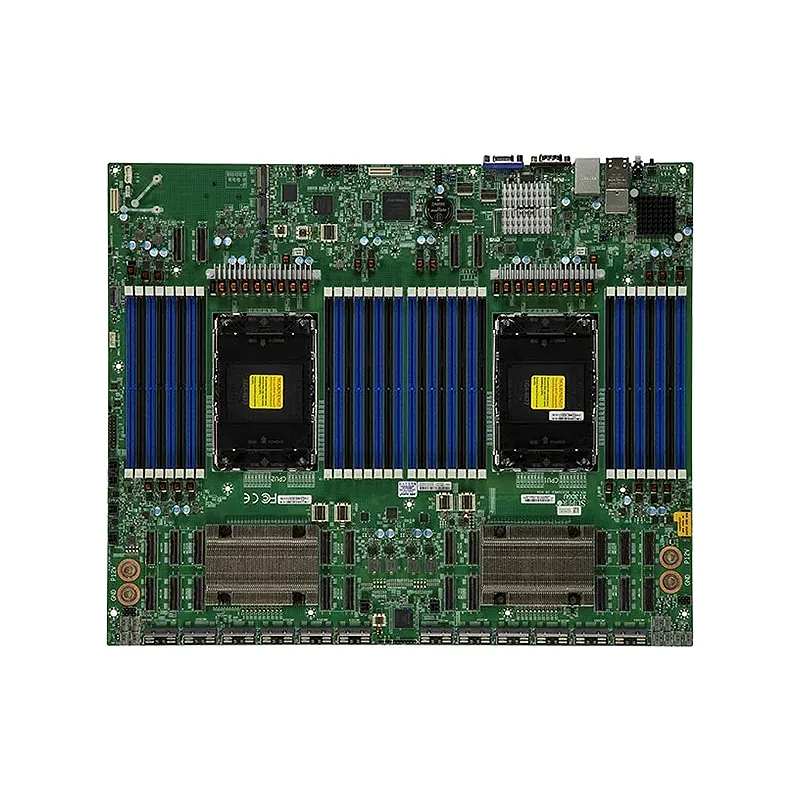

- MBD-X13DGU
Physical Stats
- Form Factor
Proprietary
- Dimension
14.29″ x 17.32″ (36.3cm x 43.99cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported - Core
Up to 64 cores
System Memory
- Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
- DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 10 SATA3 ports
- Network Controllers
Dual LAN
Dual LAN with 10Gbase-T, Intel Ethernet Network Adapter X710
Input / Output
- USB
2 USB port(s) (2 rear)
- Video Output
1 rear port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
16 PCIe 5.0 x8 PCIe5.0 MCIO connector
- M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
