Product SKUs

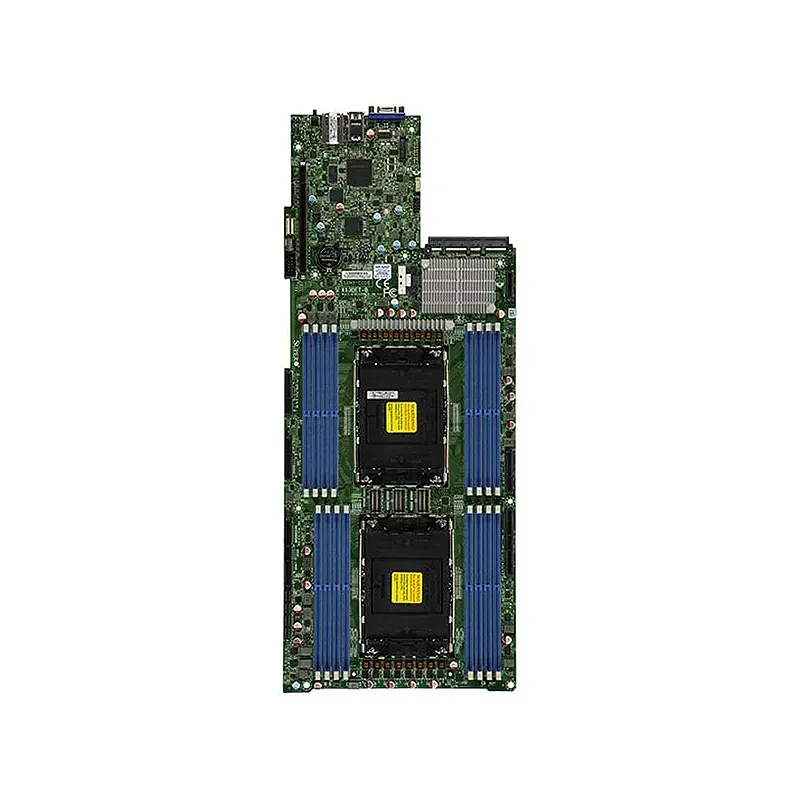

- MBD-X13DET-B
Physical Stats
- Form Factor
Proprietary
- Dimension
7.62″ x 18.8″ (19.36cm x 47.75cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
Dual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported - Core
Up to 64 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 4 SATA3 (6 Gbps) ports
Intel C741 controller for 8 SATA3 (6 Gbps) ports - Network Controllers
AIOM for LAN
Input / Output
- USB
2 USB 3.2 Gen1 port(s) (2 rear type A)
- Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
- Others
1 AIOM PCIe 5.0 x16 (10Gbps)
Expansion Slots
- PCIe
1 PCIe 5.0 x16 for Left riser card support,
1 PCIe 5.0 x16 for Right riser card support,
1 PCIe 5.0 x8 connector for SMC add-on cards,
2 PCIe 5.0 x8 Proprietary Storage adapter Slot,
3 PCIe 5.0 x8, NS-HD connector,
1 PCIe 5.0 x16 AIOM Networking Slot, AIOM slots Superset of OCP 3.0 Expansion - M.2
M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
SXB5 supports 2 M.2 devices in 22110 form factor with 2x PCIe 4.0×4, or 2 M.2 devices in 2280 form factor with 2x PCIe 3.0×4
System BIOS
- BIOS Type
AMI 32MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
