Product SKUs

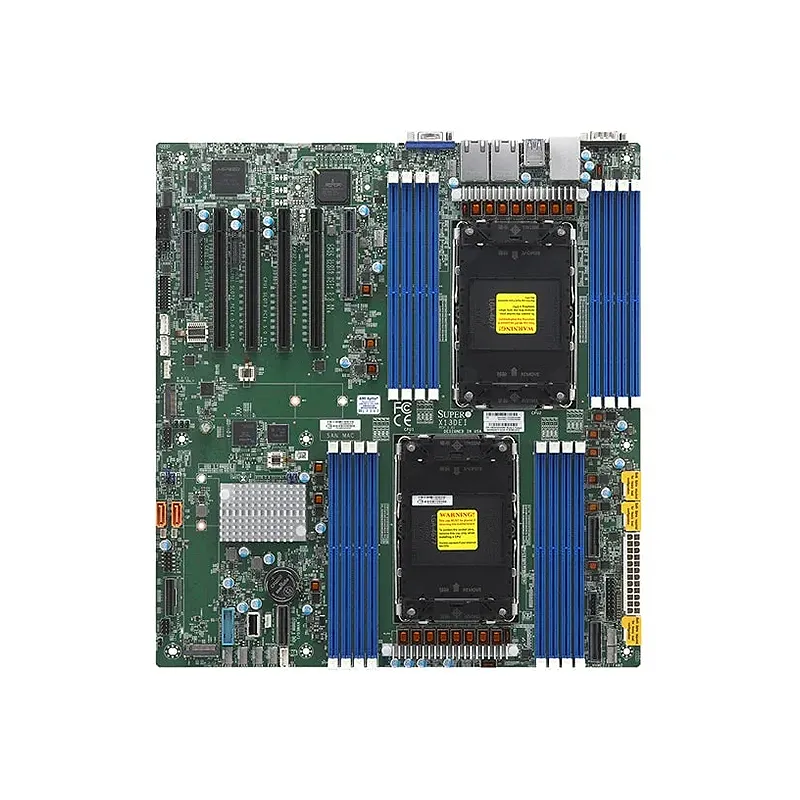

- MBD-X13DEI
Physical Stats
- Form Factor
EATX
- Dimension
12.1″ x 13.05″ (30.74cm x 33.15cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Dual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP - Core
Up to 64 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1 - IPMI
ASPEED AST2600 BMC
- Network Controllers
Dual LAN
Dual LAN with Broadcom BCM5720 1GBase-T
Input / Output
- SATA
8 SATA3 (6Gbps) port(s)
2 SATA3 (6Gbps) port(s) - LAN
1 RJ45 Dedicated IPMI LAN port
- USB
6 USB 3 port(s) (2 via header; 4 rear)
3 USB 2 port(s) (2 via header; 1 Type A) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- TPM
1 TPM Header
- Others
3 MCIO PCIe 5.0 x8
Expansion Slots
- PCIe
2 PCIe 5.0 x8,
4 PCIe 5.0 x16 - M.2
M.2 Interface: 2 PCIe 4.0 x2
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
