Product SKUs

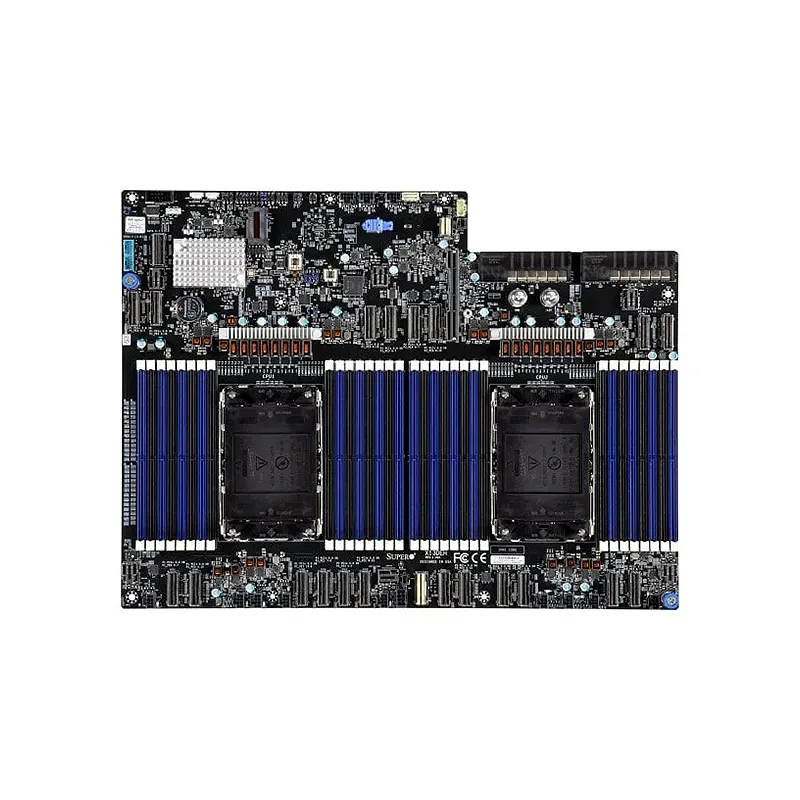

- MBD-X13DEH
Physical Stats
- Form Factor
Proprietary
- Dimension
12″ x 16.5″ (30.48cm x 41.91cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP - Core
Up to 64 cores
System Memory
- Memory Capacity
32 DIMM slots
Up to 8TB ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
- DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB - Memory Voltage
1.1V
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 1 PCIe 5.0 x8 ports
- Network Controllers
Input / Output
- SATA
1 SATA3 port(s)
- USB
1 USB 2 port(s) (1 via header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
20 PCIe 5.0 x8 PCIe5.0 MCIO connector,
1 PCIe 5.0 x8 SlimSAS, For IO board for USB/DP/LAN - M.2
M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2280, 22110
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
