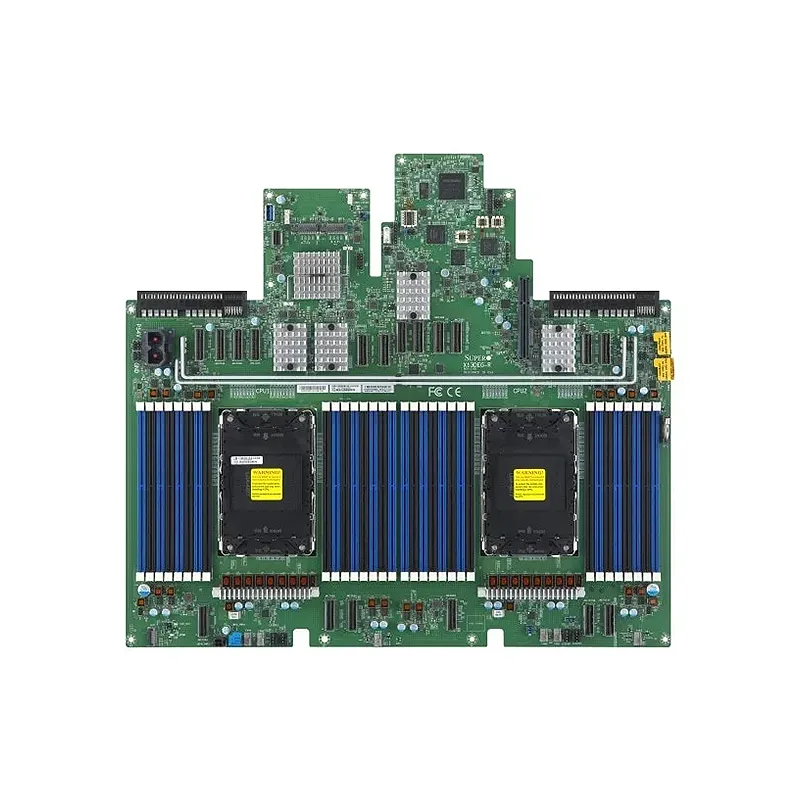

Supermicro MBD-X13DEG-R

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
Dual Socket E supported, CPU TDP supports Up to 350W TDP
Core
Up to 64 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: Up to 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM	1 TPM Header
Network Controllers	AIOM for LAN
M.2	2280Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4Form Factor: 22110
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 8GB
BIOS Type	AMI 32MB AMI UEFI
Dimension	17.3" x 15.7" (44cm x 39.9cm)
PCIe	1 PCIe 5.0 x16 AIOM Slot, 18 PCIe 5.0 x8 PCIe5.0 MCIO connector
USB	1 USB 3.1 Gen1 port(s) (1 Type A)
Form Factor	Proprietary
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	5th Gen Intel XeonDual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware	Trusted Platform Module (TPM) 2.0
SATA	Intel C741 controller for 4 SATA3 ports
Memory Capacity	32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 64 cores
