| BIOS Features | ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2 |
|---|---|
| M.2 | 2280Key: M-Key, M.2 Interface: 2 PCIe 4.0 x4Form Factor: 22110 |
| Chipset | Intel C741 |
| DIMM Sizes | 128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB |
| BIOS Type | AMI 32MB AMI UEFI |
| Dimension | 15" x 17" (38.1cm x 43.18cm) |
| PCIe | 1 PCIe 5.0 x16 AIOM, 12 PCIe 5.0 x8 PCIe5.0 MCIO connector |
| Form Factor | Proprietary |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC) |
| Application | Server |
| Memory Voltage | 1.1V |
| CPU | 5th Gen Intel XeonDual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP |
| SATA | Intel C741 controller for 8 SATA3 ports |
| Memory Capacity | 32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-5600MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 64 cores |
* NOTE: Image may not exactly match the product

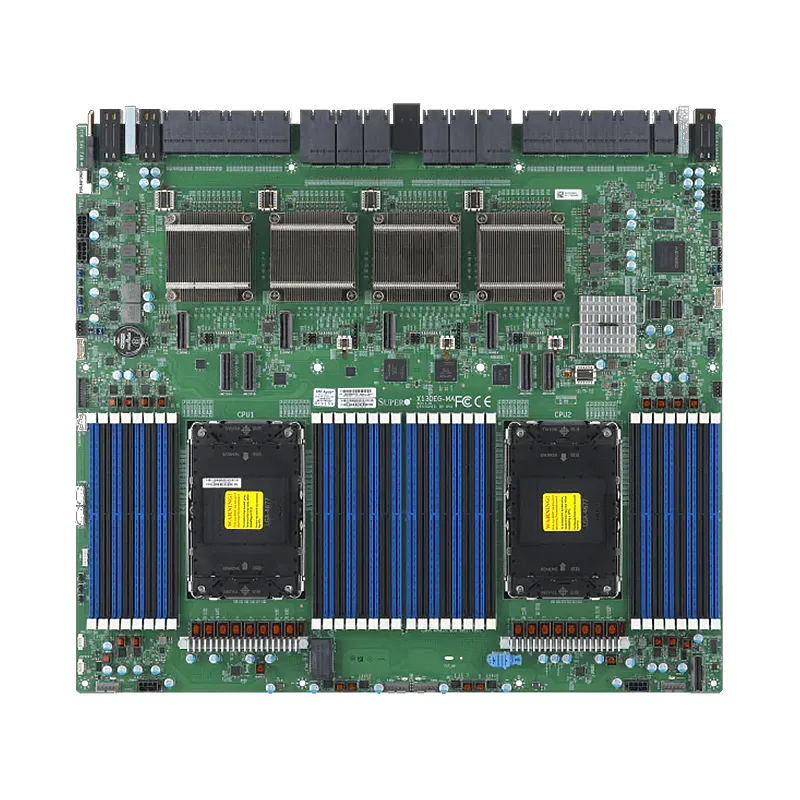

Supermicro MBD-X13DEG-MA
