Product SKUs

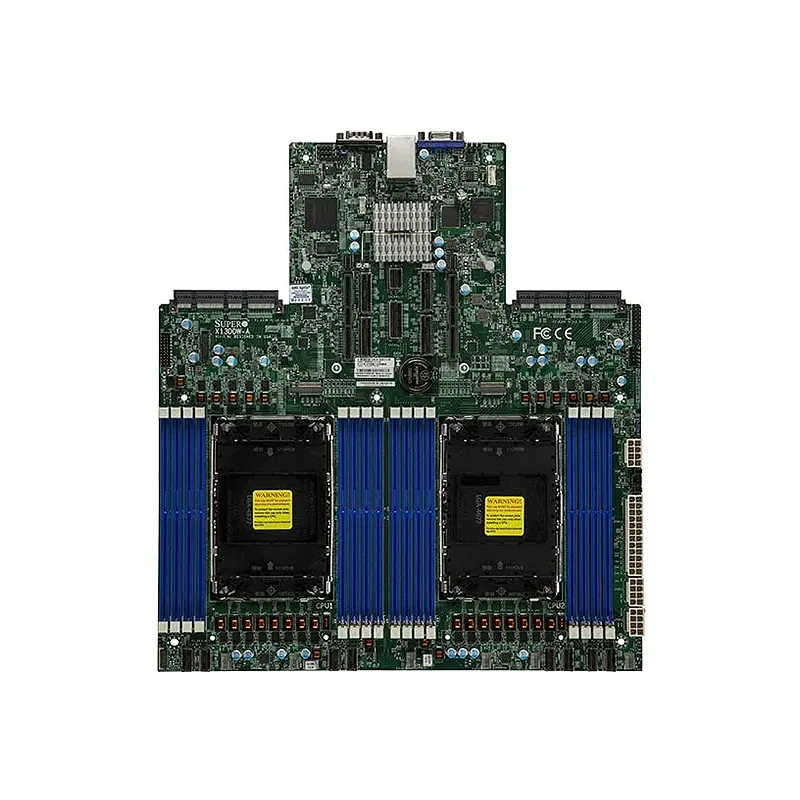

- MBD-X13DDW-A
Physical Stats
- Form Factor
Proprietary
- Dimension
12.289″ x 13.404″ (21.214cm x 34.046cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Dual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP - Core
Up to 64 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 12 SATA3 ports
- Network Controllers
Input / Output
- SATA
12 SATA3 (6Gbps) port(s)
- USB
2 USB 2 port(s) (2 via header)
2 USB 3.2 Gen1 port(s) (2 rear) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 rear)
- TPM
1 TPM Header
- Others
8 MCIO
Expansion Slots
- PCIe
1 PCIe 5.0 x16 Right Riser Slot,
1 PCIe 5.0 x16 Left Riser Slot,
2 PCIe 5.0 x16 AIOM Slot, AIOM slots Superset of OCP 3.0 Expansion,
2 PCIe 5.0 x16 Center Right Hand Slot - M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2260/2280
Key: M-Key
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
