Product SKUs

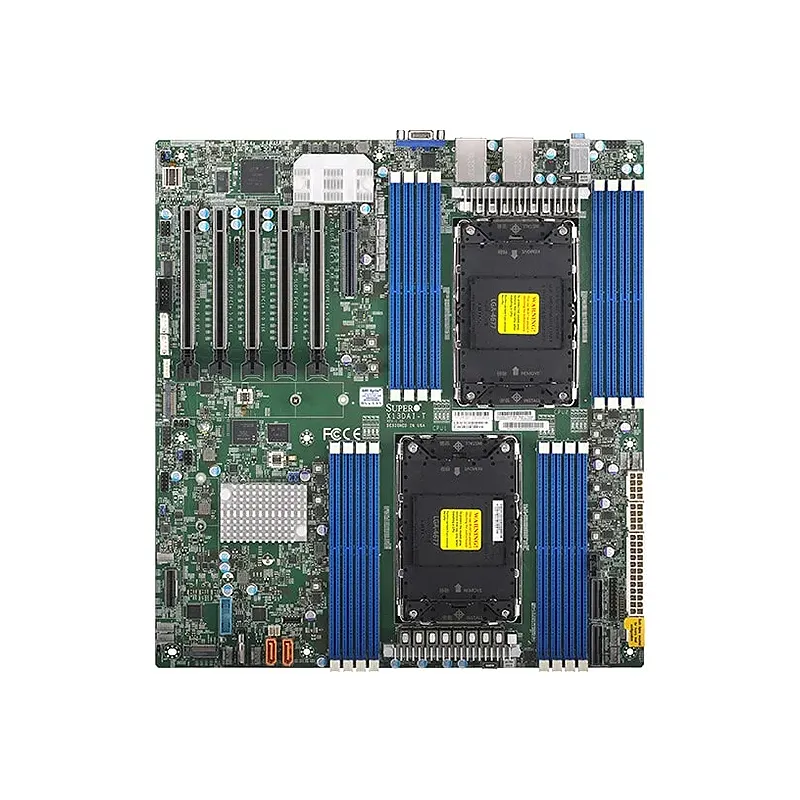

- MBD-X13DAI-T
Physical Stats
- Form Factor
EATX
- Dimension
12.1″ x 13.1″ (30.734cm x 33.274cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP - Core
Up to 64 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 5600MT/s
- DIMM Sizes
16GB, 32GB, 64GB, 96GB, 128GB, 256GB
RDIMM: Up to 256GB - Memory Voltage
1.1V
- Error Detection
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C741
- SATA
8 SATA3 ports; RAID 0, 1, 5, 10
2 SATA3 ports; RAID 0,1 - Network Controllers
Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
- USB
6 USB 3 port(s) (2 headers; 4 rear type A)
2 USB 2 port(s) (2 headers)
1 USB 3.1 Gen2 port(s) (1 headers) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 5.0 x8,
5 PCIe 5.0 x16 - M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
