Product SKUs

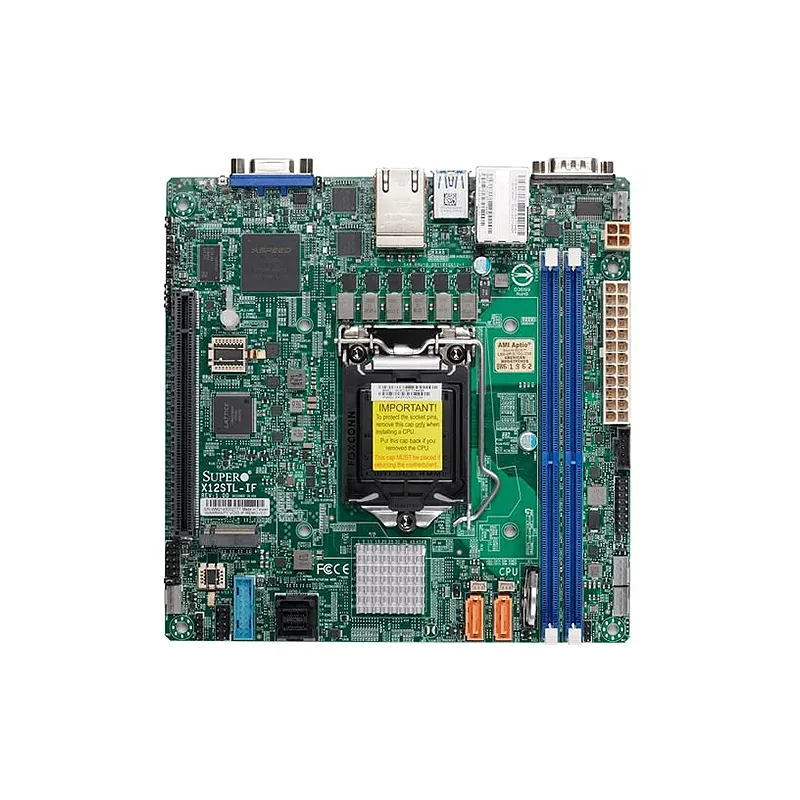

- MBD-X12STL-IF
Physical Stats
- Form Factor
Mini-ITX
- Dimension
6.7″ x 6.7″ (17.02cm x 17.02cm)
Processor
- CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP - Core
Up to 8 cores
System Memory
- Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s SDRAM
- DIMM Sizes
4GB, 8GB, 16GB, 32GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C252
- SATA
Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller
Input / Output
- SATA
6 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 Gigabit Ethernet LAN ports
- USB
4 USB 2.0 port(s) (2 via header; 2 rear)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 rear)
- DOM
2 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x16
- M.2
M.2 Interface: 1 PCIe 3.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
256MB UEFI
- BIOS Features
ACPI 6.0
SMBIOS 3.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
