Product SKUs

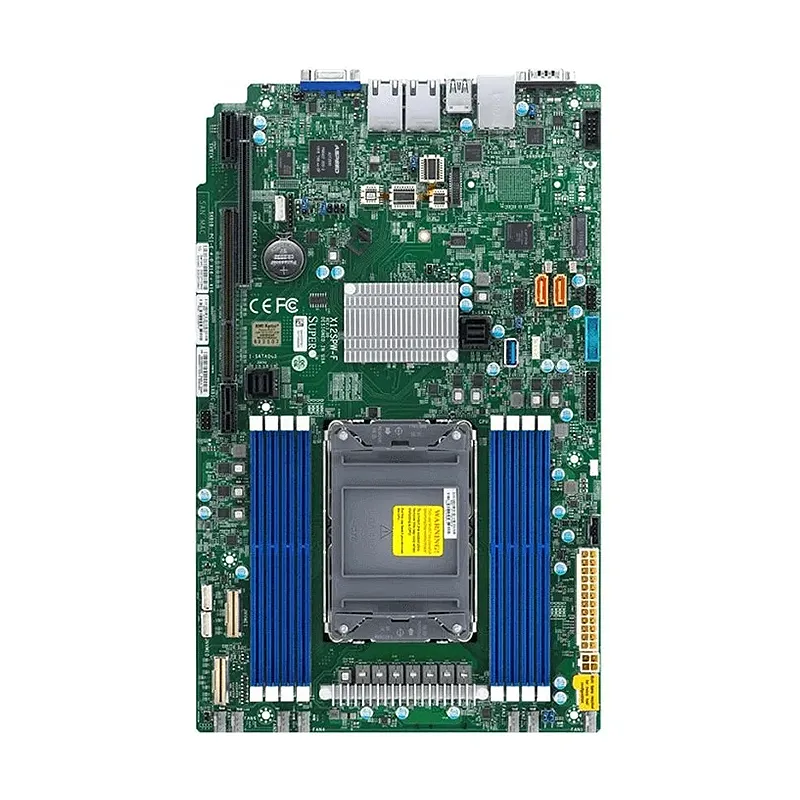

- MBD-X12SPW-F
Physical Stats
- Form Factor
Proprietary WIO
- Dimension
8″ x 13″ (20.32cm x 33.02cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP - Core
Up to 40 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s - Memory Type
ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM 3DS: 128GB, 256GB
LRDIMM: 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
Dual LAN with 1GbE with Intel I210
Input / Output
- SATA
10 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 Gigabit Ethernet LAN ports
- USB
4 USB 2.0 port(s) (2 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) - Video Output
1 VGA port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- DOM
2 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x32 Left Riser Slot,
2 PCIe 4.0 x8 SlimSAS connector - M.2
M.2 Interface: PCIe 3.0 x4; SATA
Form Factor: 2280, 22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
- BIOS Features
ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later
Management
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
