Product SKUs

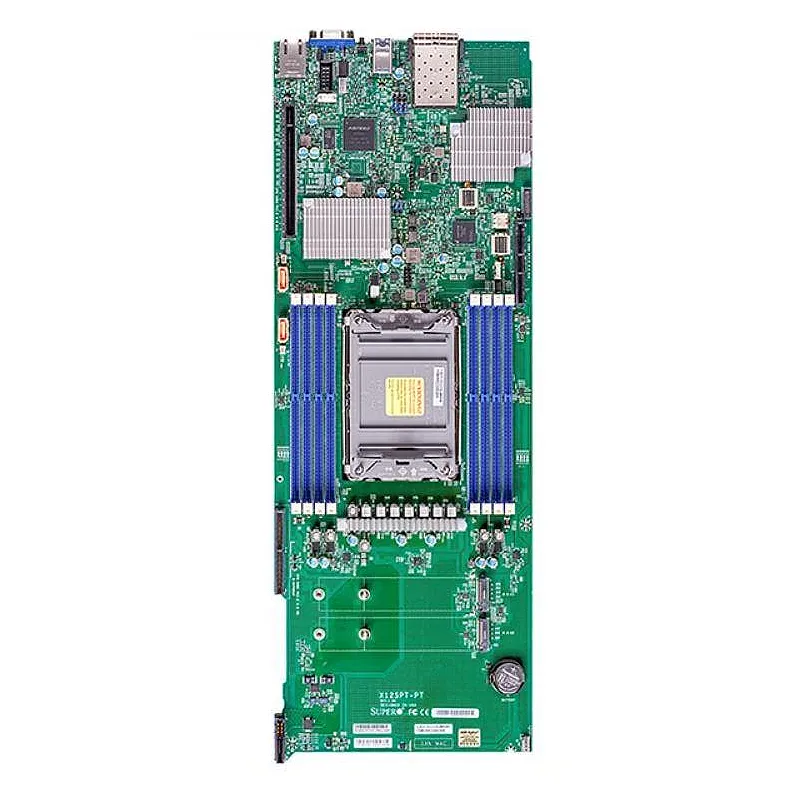

- MBD-X12SPT-PT
Physical Stats
- Form Factor
Proprietary
- Dimension
6.8″ x 18.86″ (17.27cm x 47.9cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP - Core
Up to 40 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 2TB ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
- DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
LRDIMM: 32GB, 64GB, 128GB, 256GB
RDIMM: 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
Dual LAN with 10G SFP+
Input / Output
- SATA
6 SATA3 (6Gbps) port(s)
- LAN
2 10G SFP+ LAN ports
- USB
2 USB 3.2 Gen1 port(s) (2 rear)
- Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- DOM
2 Super DOM (Disk on Module) port with build power
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x16 Left Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot - M.2
M.2 Interface: 2 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- Power Configurations
ACPI Power Management
